Beltane Brue Ecodesign – 4kw Defra Multifuel Stove With Log Store

£1,060.00 Inc VAT

Beltane Brue Ecodesign - 4kw Defra Multifuel Stove With Log Store

£1,060.00 Inc VAT

Essential Extras

Kidde Carbon Monoxide Alarm £16.99 Inc VAT

Vitcas Black Fire Cement - 500g £4.27 Inc VAT

Acorn Black Companion Set £43.00 Inc VAT

Fitting Kit

includes 1 metre stove pipe and 800x400mm register plate

Flue Liner Bundle

Stove Glass Damage Cover

Display Option

Display Choice

Total: £1,060.00

Gallery
Description
Technical Details
Manufacturer
Warranty
Stove Options
Reviews 0

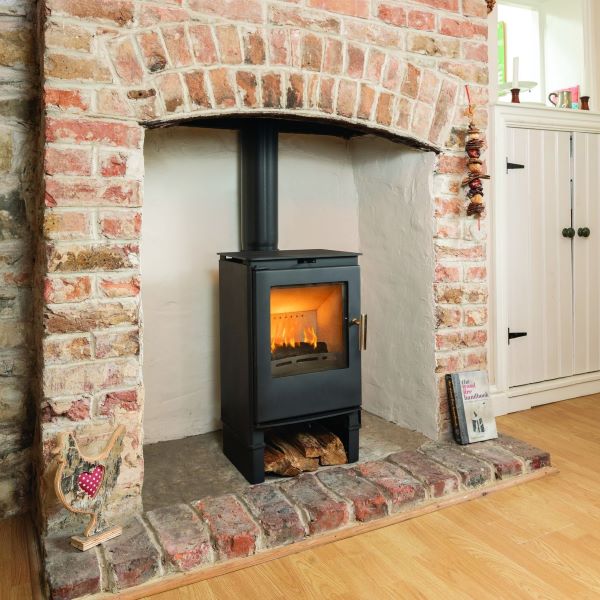

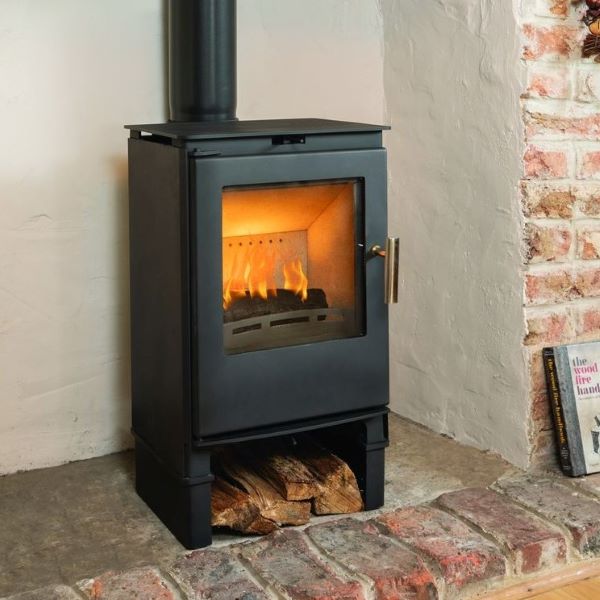

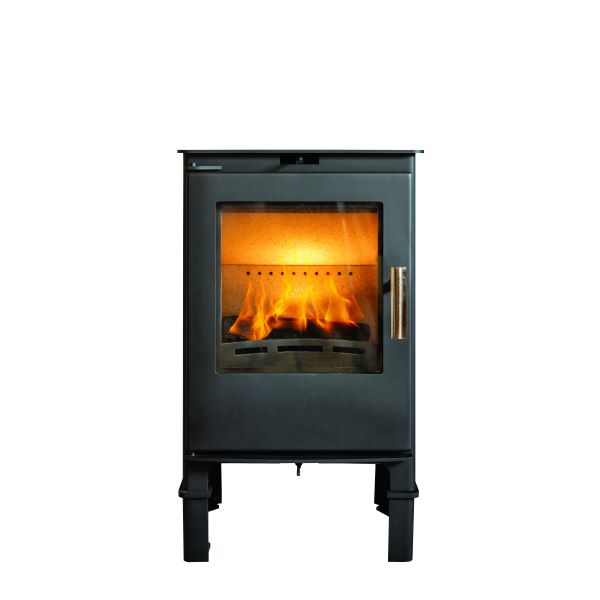

The Beltane Brue 4kw is Defra Approved Multifuel/Wood Burning Stove manufactured using high grade steel and with a modern design. This model of stove has a efficiency rating of 81.4%, has a energy rating of A+ and is now available with logstore base. The logstore makes an ideal space to store an evenings worth of wood. This model of stove, as a rough guide, is suitable for a room measuring in the region of 16ft (L) X 16ft (W) X 8ft (H) non-open plan with average insulation properties.

Features:

Great for smaller spaces
Easy to use Air Controls
Output Range from 3 – 5kW
Vermiculite Lined
Cast Iron Grate
British Design
Suitable for 12mm Floorplate
A+ Energy Rated
Defra Approved
Eco design Ready

Technical Details

SKU	TSTV-CWB-BBEL-NBRU-FLOG
Brand	Beltane Stoves
Style	Traditional
Type	N/A
Construction	Steel
Fuel Type	Multi Fuel
Heat Output	4 kW
DEFRA Approved	yes
EcoDesign Ready	yes
clearSkies Level	clearSkies 5
Energy Efficiency Rating	A+
Stove Efficiency	80.9%
Weight	60 kg
External Dimentions	H632 x W380 x D303 mm
Max. Log Length	250 mm
Flue Outlet Location	Top / Rear
Flue Outlet Diameter	5" (125 mm)
Distance rear to center of top flue outlet	415 mm
Distance floor to center of rear flue outlet	140 mm
Primary Air	yes
Secondary Air	yes
Tertiary Air	yes
Log Store	yes
Pedestal	yes
Colour	Black
Suitable for 12mm hearth	yes
Warranty	5 year(s)

Manufacturer: Beltane Stoves

Beltane Stoves are distributed by a well-established and reputable stove company ‘Eurostove’. Eurostove Ltd is a family business with roots set firmly in Somerset; they have been established since 2004 specialising in importing quality branded European stoves. Their combined experience in the stove industry and knowledge of the European stove market enables them to source exceptional appliances and import them to the UK to sell through a specially selected group of retailers who are committed to stoves and respected for their knowledge of freestanding stoves, insets and cookers.

Warranty Details

Every BELTANE is designed and built with great care and with the finest materials, ensuring quality control is an integral part of the production process. Beltane models have an extended 2-year guarantee against material faults and other manufacturing defects in line with the following warranty terms. The warranty will only apply if we have received from you the duly completed registration card within 2 weeks of purchase. If the card is not registered a statutory 1 year warranty applies. Your stove must have been purchased from an authorised Beltane dealer (Volsom Ltd – Glowing Embers) whose name must be shown on the registration card. Your stove must have been installed and serviced within 12 months of installation by a HETAS or equivalent registered engineer. This warranty covers replacement or repair of the parts found to be defective but does not cover the labour or carriage charges. Beltane reserve the right to inspect any component prior to replacement. Beltane reserve the right to refuse to provide replacement parts if the registration card has not been completed and returned.

Please note that this warranty is not transferable and is extended only to, and is solely for, the benefit of the original purchaser of the stove and will therefore only apply when the dated sales receipt as proof of purchase is produced to Beltane.

WHAT IS NOT COVERED:

The warranty does not cover 1. Consumable service parts being repair or replacement of parts, which are subject to normal wear and tear during the warranty period or parts that require replacement in connection with normal maintenance. Such parts include but are not limited to baffles, fire bars, grate assemblies, firebricks, glass, and glass assemblies, ash trays, and sealing materials such as sealing rope. Consumable parts will require periodic replacement. 2. Senotherm painted surfaces. 3. Damage resulting from installation and usage other than as described in Beltane installation and operation instructions, or if the installation does not conform to local building and fire and safety regulations. 4. Defects or faults caused by local conditions such as draught problems and chimney defects. 5. Damage resulting from over firing the appliance -over firing can be identified by warped plates and areas where the paint pigment has been burned off or by chipping, cracking, bubbling and discolouration of the porcelain enamel finish in the case of enamel stoves (as further described in the operation manual). 7. Damage caused by use of the wrong type of fuel. 8. Damage caused by modifications or repair other than as expressly authorised by Beltane or by the user or any other party other than Beltane. 9. Damage made while the stove is in transit. (Any appliance so damaged must not be installed or operated as this may damage any claim you may have against the carrier/authorised dealer). Please contact the authorised Beltane dealer from whom you bought the stove. 10. Damage arising where the stove has been used for commercial, business or resale purposes nor shall we have any liability to you for any loss of profit, loss of business, business interruption, or loss of business opportunity. 11. Parts of products for which any manufacturer other than Beltane provides warranties.

Products repaired or replaced under the warranty are covered only for the remainder of the original warranty period.

Any claim under this warranty must in the first instance be submitted to the authorised dealer from whom the stove was purchased (Volsom Ltd – Glowing Embers). If such dealer has ceased trading or is no longer an authorised dealer please write to Beltane, indicating the model number, size and serial number, the place, price and date the stove was purchased (including the original sales receipt) the date it was installed and any other information which Beltane may reasonably require. The warranty does not affect your statutory rights and Beltane does not seek to limit liability for death or personal injury caused by Beltane’s negligence or the negligence of its employees, agents or subcontractors. Beltane will not in any circumstances (whether under the warranty or otherwise) be responsible for loss or damage you suffer that is not a foreseeable result of its breach of this warranty.

Stove Options

Stove Glass Accidental Damage Cover

Replacing damaged stove glass is something most stove owners will be familiar with, be it by closing the door on a protruding log, over-tightening the glass retaining clips or the natural heat expansion of the door, chances are you have had to purchase replacement glass for your wood burning stove at least once.

By adding Glowing Embers' Accidental Damage Cover, you have peace of mind that the potentially costly process of cutting and shipping a replacement glass is covered for when those accidental breakages occur.

Terms & Conditions

Glass Protection covers you for cracked or smashed stove glass for the period of time that you select. We cover you for accidental breakage for any reason for the length of time you selected but doesn't cover for any consequential loss or installation costs. Installation is usually an easy process, and our team can talk you through it. To claim against this protection, simply send us an email prior to the expiration date (either 1 or two years from the purchase date, depending upon which option you pick) with a photo clearly showing your stove with the broken glass. We may require measurements or a template from you to cut the replacement glass accurately and your provision of this when required is conditional on our fulfilment of this protection. The protection covers you for one replacement only within the set period, additional breakages (outside of breakage on delivery which will be covered free of charge) will fall outside of this protection. This only covers flat glass cut by Glowing Embers and does not cover curved or printed glass.

Stove Fitting Kit

5" (125mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 5" (125mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate), 5" Reducing Plate and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 5" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut central hole (reduced to 5" diameter when used with the provided Reducing Plate) for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

6" (150mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 6" (150mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 6" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut 6" central hole for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

7" (175mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 7" (175mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 7" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires a 7" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

8" (200mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with an 8" (200mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 8" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires an 8" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

Flexible Chimney Liner Kit

5" (125mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 5" diameter Stove Pipe, your choice of 6-12m of 5" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

6" (150mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 6" diameter Stove Pipe, your choice of 6-12m of 6" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

8" (200mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 8" diameter Stove Pipe, your choice of 6-12m of 8" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

Stove Essential Extras

Carbon Monoxide (CO) Alarm

Legal requirement for all stove installations, add an easy to fit CO Alarm to your order so you're ready for a safe stove installation. Free standing or wall mounted (see our Carbon Monoxide (CO) guide for correct placement), this alarm comes supplied with batteries for a minimum seven years continuous operation and meets the requirements of Building Regulations Approved Document J.

Stove Pipe Thermometer

Add our simple to read Stove Pipe Thermometer to your order and start operating your stove at its optimum performance from day one. Intended for fixing to the first length of single wall stove pipe, this thermometer accurately displays the burning temperature in both °C and °F as well as illustrating temperature zones for best operation, too hot and too low.

500g Fire Cement

Ideal for a variety of applications, Fire Cement is an essential extra for all stoves as it is required for sealing stove pipe, outlet collar and Flex Adapter connections as well as around Register Plates to prevent loss of gases and heat from the system. This ready mixed black Fire Cement creates smoke tight seals once fully cured.

Double Socket Adapter

An essential for any European model of stove, you simply won't be able to connect your flue pipe without our Double Socket Adapter. Designed to secure over the stove's outlet collar (which will be a male spigot), the Adapter converts it to a female socket to allow your Stove Pipe or Twin Wall Adapter to connect securely and safely.

(Acorn) Black Stove Companion Set

Don't forget to add a Companion Set to your order as you'll wish you have one when first lighting the stove! This 530mm tall, traditionally designed set is finished in black and features all the essential fireside tools you need suspended above a sturdy base - Tongs for positioning logs inside the firebox, a shovel and brush for cleanly removing ash and a poker to stoke the fire.
