Adjustable Wall Sleeve 45° For Twin Wall Flue Pipe – 5″ (125mm)

£45.28 Inc VAT

Gallery
Description
Technical Details
Manufacturer
Reviews 0

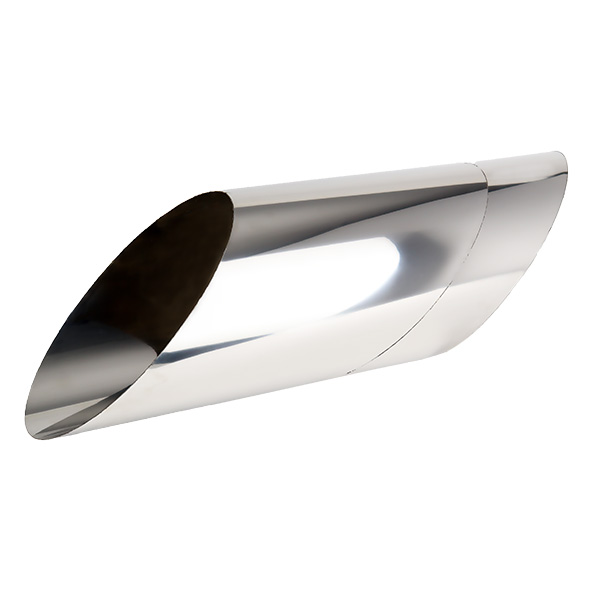

The Shieldmaster 45 wall sleeve fits around your pipe when passing through a wall at 45 degrees, to protect your wall from the heat generated by the flue pipe. This sleeve can be easily cut down to fit your wall or cavity. Each of the two sliding pieces is 280mm in length, giving a total length, when extended of 530mm, with a 30mm overlap.

Shieldmaster does not need any additional silicone or sealants to seal the joints. It has a unique push-fit locking system to make connecting and disconnecting really simple.

Please note – as with all twin wall parts the diameter quoted is the internal diameter – the external diameter is 2 inches larger due to the surrounding insulation.

Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

For more information about twin wall flue installations, see our guide.

Distance to Combustibles: 60mm
Brand: Shieldmaster
Warranty: 25 Years
Finish: Stainless
Diameter: Approx. 200mm
Length: Approx. 280mm-540mm
Grade of Steel: 304 External
Thickness of Steel: 0.5mm
Insulation: No
Temperature Resistance: 450°C
Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
Designation: T450-N1-D-Vm-L50050-G60

https://www.youtube.com/watch?v=Amzt5FeBXig

Technical Details

SKU	TTWI-BSHI-LSTN-D125-CS45
Brand	Shieldmaster
Flue System	Twin Wall Flue System
Flue Diameter	5" (125mm)
Flue Colour	Silver
Flue Part	Wall sleeve

Manufacturer: Shieldmaster

Shieldmaster twin wall flue pipe is precision made to achieve a smaller distance to combustible materials than many other pipes on the market. At just 60mm minimum clearance to combustibles and a 25 year warranty this brand of twin wall pipe really does the job well and is built to last. With its unique push fit system it easily locks with an included band without the need for any sealant or adhesives at the joins.
