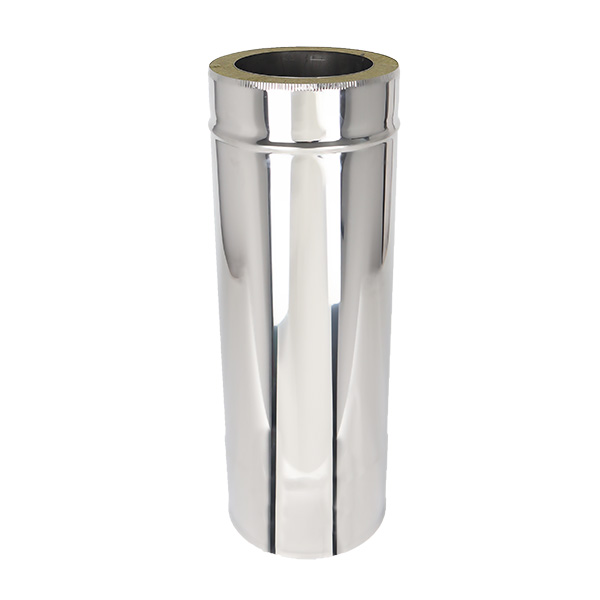

Straight Length 500mm Twin Wall Insulated Flue Pipe – 5″ (125mm)

£52.16 Inc VAT

(2 customer reviews)

Add to Cart
Straight Length 500mm Twin Wall Insulated Flue Pipe - 5" (125mm)
Straight Length 500mm Twin Wall Insulated Flue Pipe - 5" (125mm)
£52.16 Inc VAT

Display Option

Total: £52.16
Get it Tomorrow if you order within and choose next day shipping at checkout

Delivery

  • Order by 12pm - delivery next working day
  • Available for Click & Collect - allow one working day

The Shieldmaster 500mm length of twin wall pipe is used to create the main run of your chimney system. This part comes with a locking band to easily and quickly connect to a previous Shieldmaaster part. This is a fixed length of pipe and cannot be cut down.

Shieldmaster does not need any additional silicone or sealants to seal the joints. It has a unique push-fit locking system to make connecting and disconnecting really simple.

Please note – as with all twin wall parts the diameter quoted is the internal diameter – the external diameter is 2 inches larger due to the surrounding insulation.

Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

For more information about twin wall flue installations, see our guide.

Technical Details

SKUTTWI-BSHI-LSTN-D125-S500
BrandShieldmaster
Flue SystemTwin Wall Flue System
Flue Diameter5" (125mm)
Flue ColourSilver
Flue PartPipe
  • Distance to Combustibles60mm
  • Warranty25 Years
  • FinishStainless
  • Internal Diameter125mm
  • External Diameter175mm
  • Effective Length450mm
  • Connections50mm Push Fit (Locking Band Included)
  • Grade of Steel316 Internal, 304 External
  • Thickness of Steel0.5mm
  • Insulation25mm Compressed Rockwool
  • Temperature Resistance450°C
  • ApprovalsHETAS ANC112, BS 476-20, CE, EN 1856-1:2009
  • DesignationT450-N1-D-Vm-L50050-G60

Manufacturer: Shieldmaster

Shieldmaster twin wall flue pipe is precision made to achieve a smaller distance to combustible materials than many other pipes on the market. At just 60mm minimum clearance to combustibles and a 25 year warranty this brand of twin wall pipe really does the job well and is built to last. With its unique push fit system it easily locks with an included band without the need for any sealant or adhesives at the joins.

Warranty Details

Shieldmaster flue products come with a 25-year warranty covering manufacturing defects, provided the system is installed and used in accordance with the supplied installation instructions. To maintain warranty validity, the flue must be professionally swept at least once a year by an approved chimney sweep, with a signed service record kept. When burning solid fuels, only those approved by HETAS or the Solid Fuel Association are permitted. Use of unapproved fuels or any indication of a chimney fire will void the warranty. For coloured flue pipes with a powder-coated finish, the surface coating is covered by a separate 2-year warranty.

Shieldmaster Twin Wall Flue Systems Brochure
