Joist Support Bracket For Twin Wall Flue Pipe – 5″ (125mm)

£29.00 Inc VAT

Add to Cart
Joist Support Bracket For Twin Wall Flue Pipe - 5" (125mm)
Joist Support Bracket For Twin Wall Flue Pipe - 5" (125mm)
£29.00 Inc VAT

Display Option

Total: £29.00

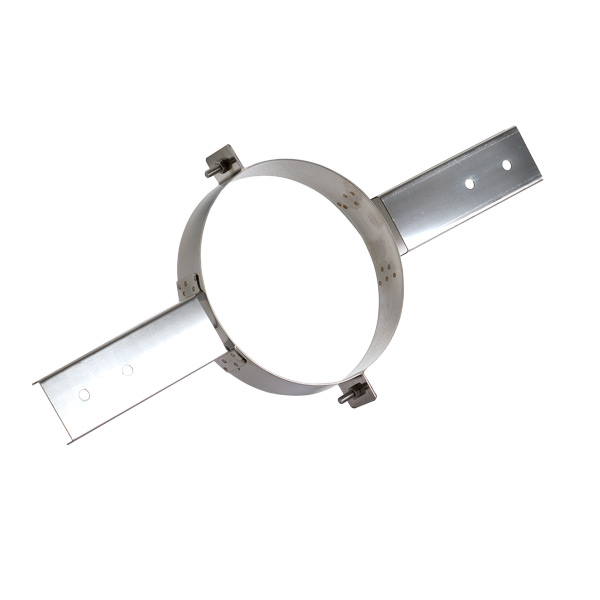

The Shieldmaster joist support bracket is designed to support your Shieldmaster system as it passes through your ceiling. The band clamps around the pipe and the arms screw to the joists either side of the pipe's penetration point.

Please note – as with all twin wall parts the diameter quoted is the internal diameter – the external diameter is 2 inches larger due to the surrounding insulation.

Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

For more information about twin wall flue installations, see our guide.



  • Distance to Combustibles: 60mm
  • Brand: Shieldmaster
  • Warranty: 25 Years
  • Finish: Stainless
  • Compatible With: 125mm Shieldmaster
  • Bracket Diameter: 175mm
  • Grade of Steel: 304 External
  • Thickness of Steel: 0.5mm
  • Insulation: N/A
  • Temperature Resistance: 450°C
  • Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
  • Designation: T450-N1-D-Vm-L50050-G60

Technical Details

SKUTTWI-BSHI-LSTN-D125-CJST
BrandShieldmaster
Flue SystemTwin Wall Flue System
Flue Diameter5" (125mm)
Flue ColourSilver
Flue PartBracket

Manufacturer: Shieldmaster

Shieldmaster twin wall flue pipe is precision made to achieve a smaller distance to combustible materials than many other pipes on the market. At just 60mm minimum clearance to combustibles and a 25 year warranty this brand of twin wall pipe really does the job well and is built to last. With its unique push fit system it easily locks with an included band without the need for any sealant or adhesives at the joins.
