Roof Support Bracket For Twin Wall Flue Pipe – 5″ (125mm)

£29.00 Inc VAT

Gallery
Description
Technical Details
Manufacturer
Reviews 0

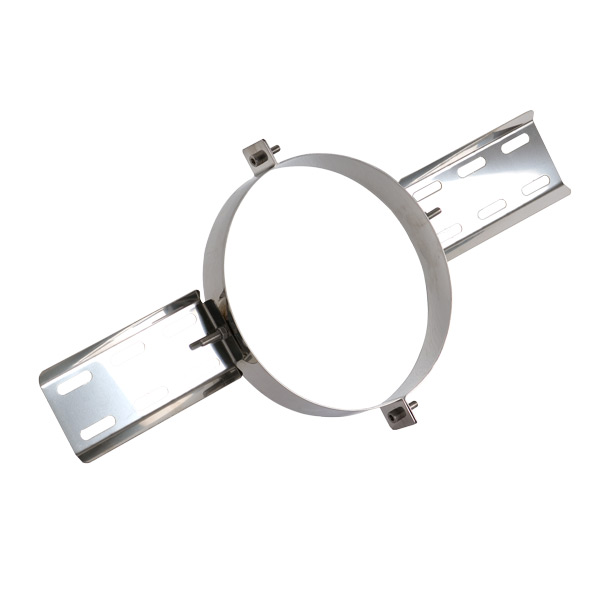

The Shieldmaster roof support bracket is designed to support your Shieldmaster system as it passes through your roof. The band clamps around the pipe and the swivel arms adjust to the pitch of your roof; the bracket is then screwed to the rafters either side of the pipe's exit point.

Please note – as with all twin wall parts the diameter quoted is the internal diameter – the external diameter is 2 inches larger due to the surrounding insulation.

Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

For more information about twin wall flue installations, see our guide.

Distance to Combustibles: 60mm
Brand: Shieldmaster
Warranty: 25 Years
Finish: Stainless
Compatible With: 125mm Shieldmaster
Bracket Diameter: 175mm

Grade of Steel: 304 External
Thickness of Steel: 0.5mm
Temperature Resistance: 450°C
Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
Designation: T450-N1-D-Vm-L50050-G60

Technical Details

SKU	TTWI-BSHI-LSTN-D125-CRFS
Brand	Shieldmaster
Flue System	Twin Wall Flue System
Flue Diameter	5" (125mm)
Flue Colour	Silver
Flue Part	Bracket

Manufacturer: Shieldmaster

Shieldmaster twin wall flue pipe is precision made to achieve a smaller distance to combustible materials than many other pipes on the market. At just 60mm minimum clearance to combustibles and a 25 year warranty this brand of twin wall pipe really does the job well and is built to last. With its unique push fit system it easily locks with an included band without the need for any sealant or adhesives at the joins.
