Ventilated Fire Stop Plate For Twin Wall Flue Pipe – 5″ (125mm)

£45.00 Inc VAT

Gallery
Description
Technical Details
Manufacturer
Reviews 0

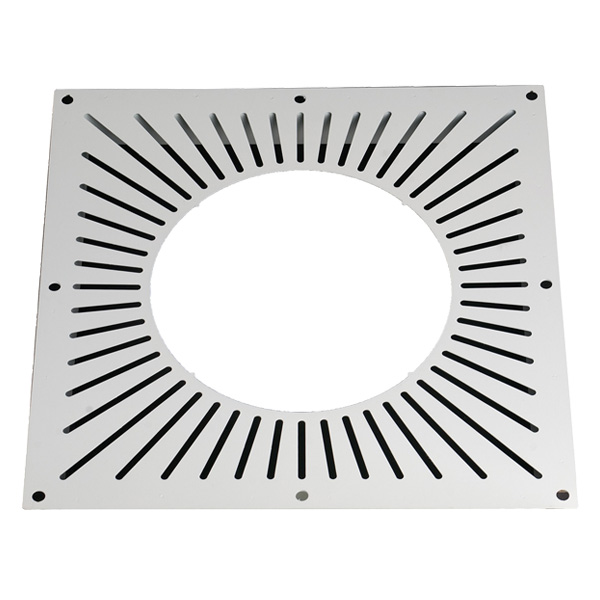

This ventillated firestop plate is appropriate for use with solid fuel appliances – see the non-ventilated firestop plate if you are not using a solid fuel stove. One plate should be around the pipe passing through a floor on every side where there is a living compartment.

Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

For more information about twin wall flue installations, see our guide.

Distance to Combustibles: 60mm
Brand: Shieldmaster
Warranty: 25 Years
Finish: White
Hole Diameter: 175mm
Plate Dimension: 340mm x 340mm

Grade of Steel: 304 External
Thickness of Steel: 0.5mm

Temperature Resistance: 450°C
Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
Designation: T450-N1-D-Vm-L50050-G60

Technical Details

SKU	TTWI-BSHI-LWHI-D125-CVFP
Brand	Shieldmaster
Flue System	Twin Wall Flue System
Flue Diameter	5" (125mm)
Flue Colour	White
Flue Part	Fire stop plate

Manufacturer: Shieldmaster

Shieldmaster twin wall flue pipe is precision made to achieve a smaller distance to combustible materials than many other pipes on the market. At just 60mm minimum clearance to combustibles and a 25 year warranty this brand of twin wall pipe really does the job well and is built to last. With its unique push fit system it easily locks with an included band without the need for any sealant or adhesives at the joins.
