Adjustable Base Support – Twin Wall Insulated Flue Pipe – 6″ (150mm) – Black

£164.99 Inc VAT

Add to Cart
Adjustable Base Support - Twin Wall Insulated Flue Pipe - 6" (150mm) - Black
Adjustable Base Support - Twin Wall Insulated Flue Pipe - 6" (150mm) - Black
£164.99 Inc VAT

Display Option

Total: £164.99

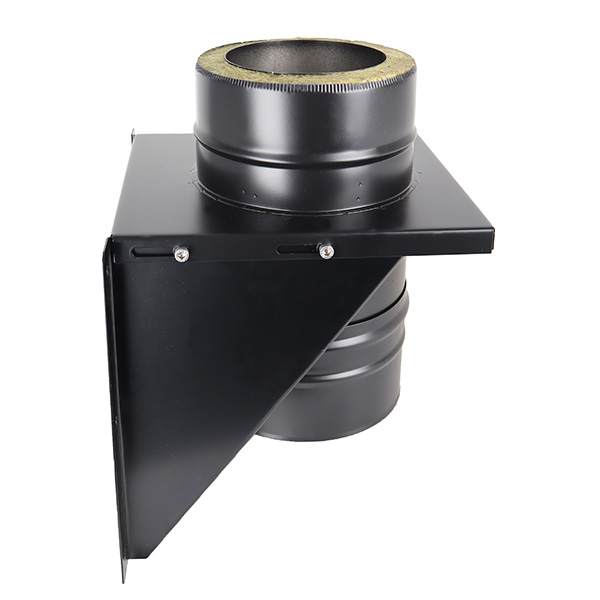

An ADJUSTABLE BASE SUPPORT is designed to significantly improve the strength of a flue system and is recommended for any long external Twin Wall run. Positioned at the base of the flue, this part creates a secure anchor point and can support up to 20m of flue. Shieldmaster Twin Wall is compatible for use with all solid fuels as well as gas and oil appliances and has a safe distance to combustibles of 60mm. It is also available powder coated to black.

Connection

Shieldmaster comes with a locking band attached where applicable for a safe and secure connection. Please note, the locking band will always be facing downwards. It is advised to seal a connection to the stove with High Temperature Sealant.

Construction

Shieldmaster Twin Wall is constructed from 0.5mm 304 grade stainless steel outer skin and 0.4mm 316 grade stainless steel inner skin. This product features one inch of compressed Rockwool insulation between the walls. Please note, the external diameter is two inches greater than the internal diameter.



All components come with a 12 year manufacturer's warranty for complete peace of mind.

Regulations

Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

For more information about twin wall flue installations, see our guide.

Call us for help: 0844 5876034



  • Distance to Combustibles: 60mm
  • Brand: Shieldmaster
  • Warranty: 25 Years
  • Finish: Black
  • Compatible With: 150mm Shieldmaster
  • Internal Diameter: 150mm
  • Grade of Steel: 304 External
  • Thickness of Steel: 0.5mm
  • Insulation: Yes
  • Temperature Resistance: 450°C
  • Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
  • Designation: T450-N1-D-Vm-L50050-G60

https://www.youtube.com/watch?v=6qfLfE56QJ0

Technical Details

SKUTTWI-BSHI-LBLK-D150-CBSU
BrandShieldmaster
Flue SystemTwin Wall Flue System
Flue Diameter6" (150mm)
Flue ColourBlack
Flue PartBracket

Manufacturer: Shieldmaster

Shieldmaster twin wall flue pipe is precision made to achieve a smaller distance to combustible materials than many other pipes on the market. At just 60mm minimum clearance to combustibles and a 25 year warranty this brand of twin wall pipe really does the job well and is built to last. With its unique push fit system it easily locks with an included band without the need for any sealant or adhesives at the joins.
