Guy Wire Bracket – For Twin Wall Flue Pipe – 6″ (150mm)

£15.49 Inc VAT

Add to Cart
Guy Wire Bracket - For Twin Wall Flue Pipe - 6" (150mm)
Guy Wire Bracket - For Twin Wall Flue Pipe - 6" (150mm)
£15.49 Inc VAT

Display Option

Total: £15.49
Get it Tomorrow if you order within and choose next day shipping at checkout

Delivery

  • Order by 12pm - delivery next working day
  • Available for Click & Collect - allow one working day

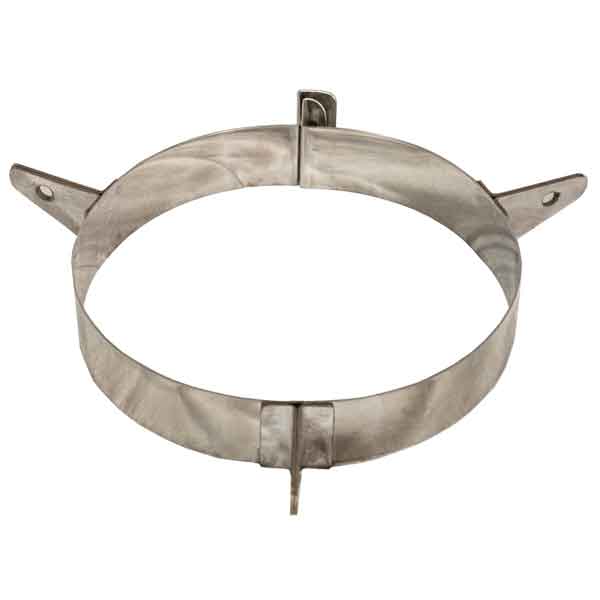

The Shieldmaster guy wire bracket is for flue runs that extend high above a roof and need extra support. The guy wire bracket clamps round the pipe and has three attachment points. We also supply a guy wire kit with wire, clamps, tensioners and islets.

Please note – as with all twin wall parts the diameter quoted is the internal diameter – the external diameter is 2 inches larger due to the surrounding insulation.

Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

For more information about twin wall flue installations, see our guide.

Technical Details

SKUTTWI-BSHI-LSTN-D150-CGWB
BrandShieldmaster
Flue SystemTwin Wall Flue System
Flue Diameter6" (150mm)
Flue ColourSilver
Flue PartBracket
  • Distance to Combustibles: 60mm
  • Brand: Shieldmaster
  • Warranty: 25 Years
  • Finish: Stainless
  • Bracket Diameter: 200mm
  • Grade of Steel: 304 External
  • Thickness of Steel: 0.5mm
  • Insulation: 25mm Compressed Rockwool
  • Temperature Resistance: 450°C
  • Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
  • Designation: T450-N1-D-Vm-L50050-G60

Manufacturer: Shieldmaster

Shieldmaster twin wall flue pipe is precision made to achieve a smaller distance to combustible materials than many other pipes on the market. At just 60mm minimum clearance to combustibles and a 25 year warranty this brand of twin wall pipe really does the job well and is built to last. With its unique push fit system it easily locks with an included band without the need for any sealant or adhesives at the joins.

Warranty Details

Shieldmaster flue products come with a 25-year warranty covering manufacturing defects, provided the system is installed and used in accordance with the supplied installation instructions. To maintain warranty validity, the flue must be professionally swept at least once a year by an approved chimney sweep, with a signed service record kept. When burning solid fuels, only those approved by HETAS or the Solid Fuel Association are permitted. Use of unapproved fuels or any indication of a chimney fire will void the warranty. For coloured flue pipes with a powder-coated finish, the surface coating is covered by a separate 2-year warranty.

Shieldmaster Twin Wall Flue Systems Brochure
