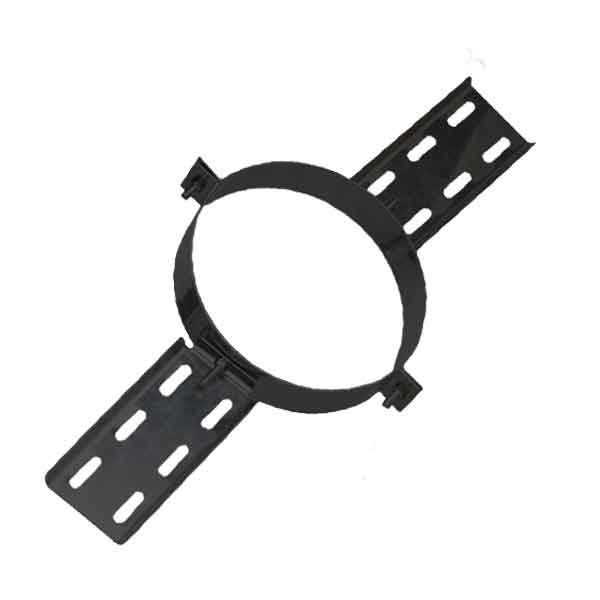

The Shieldmaster roof support bracket is designed to support your Shieldmaster system as it passes through your roof. The band clamps around the pipe and the swivel arms adjust to the pitch of your roof; the bracket is then screwed to the rafters either side of the pipe's exit point.
Please note – as with all twin wall parts the diameter quoted is the internal diameter – the external diameter is 2 inches larger due to the surrounding insulation.
Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.
For more information about twin wall flue installations, see our guide.
- Distance to Combustibles: 60mm
- Brand: Shieldmaster
- Warranty: 25 Years
- Finish: Black
- Bracket Diameter: 200mm
- Grade of Steel: 304 External
- Thickness of Steel: 0.5mm
- Insulation: No
- Temperature Resistance: 450°C
- Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
- Designation: T450-N1-D-Vm-L50050-G60
