Vitreous Enamelled Rosette Collar – 6″ (150mm)

£12.54 Inc VAT

Gallery
Description
Technical Details
Manufacturer
Reviews 0

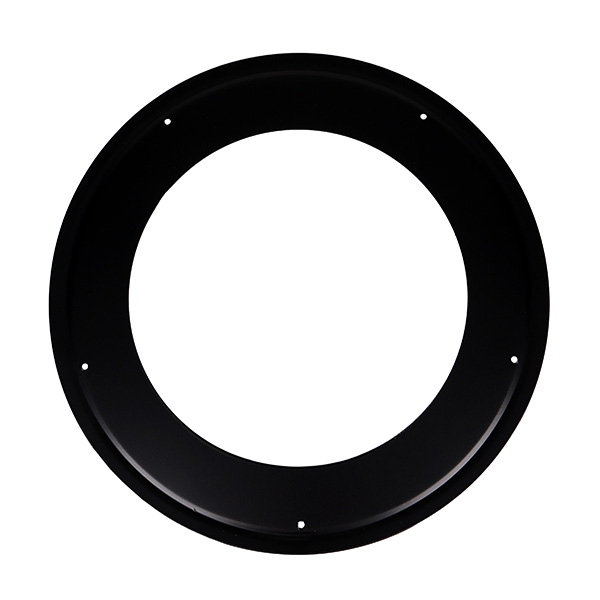

The ROSETTE COLLAR is a solid vitreous enamelled ring, designed to finish any hole for single wall flue to pass through such as in a Register Plate. This item can be secured in place with silicone or screws (not supplied) and is made to match the finish of the flue pipe. The ring itself measures approx. 40mm across. Please note, this Rosette Collar will only accommodate a pipe at 90 degrees. For an angled pipe please see SPLIT ANGLED ROSETTE COLLAR.

Connection

Vitreous Enamelled flue parts have a male connection to push fit inside the pipe or stove outlet below to ensure deposits within the pipes run down into the stove and do not escape. The male connection is always fitted facing downwards as pictured. It is advisable to seal all single wall joints with a suitable high temperature sealant. It is safe to cut single wall flue down to size for a perfect fit.

Construction

Vitreous Enamelled flue is constructed from laser welded steel. These pipes are not insulated.

Approvals

All single wall flue supplied by Glowing Embers is fully CE approved for installation in compliance with UK building regulations.

Regulations

Designed for internal use, it is against regulations to pass single wall flue through any surfaces due to the heat emitted from the pipe. The safe clearance to combustibles is three times the diameter of the flue or one and a half times the diameter to non-combustibles. It is advised to limit a run of single wall flue to 2000mm to prevent the loss of heat through the pipe which can lead to flue gases dropping. Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

For further information on using Vitreous Enamelled flue in your system, please see our Chimney Installations page or Non-Chimney Installs section

External Diameter: 234mm
Internal Diameter: 155mm (6")
Width of Ring: 37mm
Compatibility: 90° Pipe
Connection: Secure with silicone (not included)
Thickness of Steel: 0.8mm
Finish: Matt Black
Insulated: No

Technical Details

SKU	TSWP-BCHF-LMBL-D150-CRST
Brand	Chimfit
Flue System	Single Wall Flue System
Flue Diameter	6" (150mm)
Flue Colour	Black
Flue Part	Rosette Collar

Manufacturer: Chimfit
