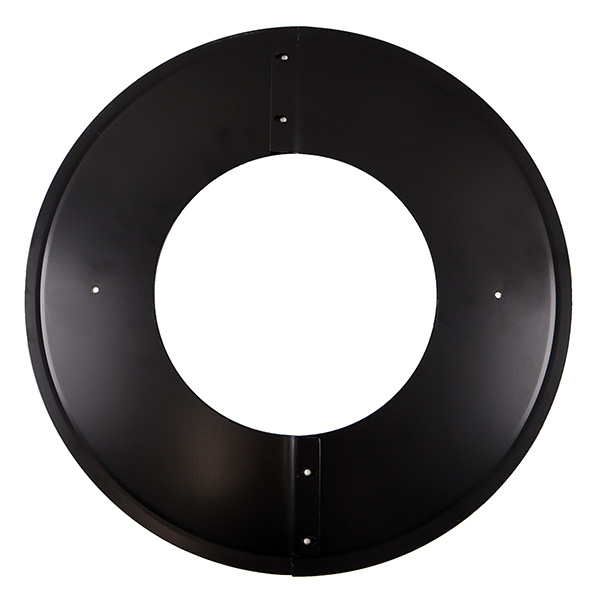

Vitreous Enamelled Split Rosette Collar – Matt Black – 6″ (150mm)

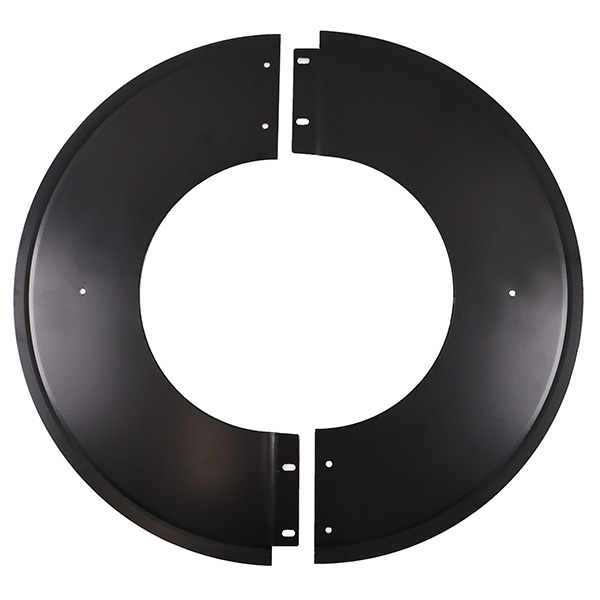

The SPLIT ROSETTE COLLAR is manufactured in two halves to allow the part to be retro fitted around a single wall flue to provide a decorative finish to any hole such as in a Register Plate. This item can be secured in place with silicone or screws (not supplied) and is made to match the finish of the flue pipe. The ring itself measures approx. 50mm across. Please note, this Rosette Collar will only accommodate a pipe at 90 degrees. For an angled pipe please see SPLIT ANGLED ROSETTE COLLAR

Connection

Vitreous Enamelled flue parts have a male connection to push fit inside the pipe or stove outlet below to ensure deposits within the pipes run down into the stove and do not escape. The male connection is always fitted facing downwards as pictured. It is advisable to seal all single wall joints with a suitable high temperature sealant. It is not advisable to cut this single wall pipe down to size.

Construction

Easy Fit Vitreous Enamelled flue is constructed from 1.2mm thick laser welded steel. These pipes are not insulated.

Approvals

All single wall flue supplied by Glowing Embers is fully CE approved for installation in compliance with UK building regulations.

Regulations

Designed for internal use, it is against regulations to pass single wall flue through any surfaces due to the heat emitted from the pipe. The safe clearance to combustibles is three times the diameter of the flue or one and a half times the diameter to non-combustibles. It is advised to limit a run of single wall flue to 2000mm to prevent the loss of heat through the pipe which can lead to flue gases dropping. Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

For further information on using Vitreous Enamelled flue in your system, please see our Chimney Installations page or Non-Chimney Installs section

• External Diameter: 272mm
• Internal Diameter: 155mm (6")
• Width of Ring: 60mm
• Compatibility: 90° Pipe
• Connection: Secure with silicone (not included)
• Thickness of Steel: 0.8mm
• Finish: Matt Black
