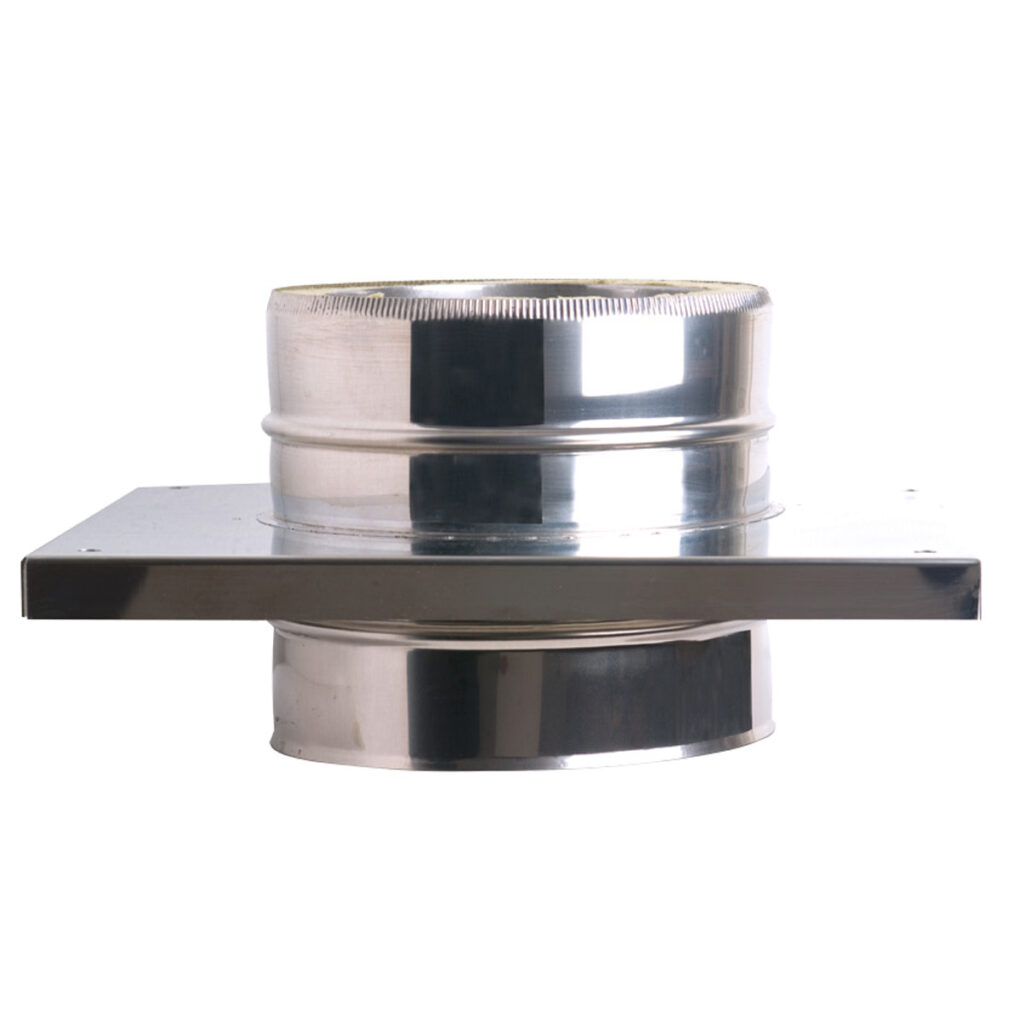

Console Plate – Twin Wall Insulated Flue Pipe – 7″ (175mm)

The Shieldmaster console plate allows you to change from flexible liner in the bottom of your chimney to then go through the roof if your stack finishes before the roof. This part comes with a locking band to easily and quickly connect to a previous Shieldmaaster part.

Shieldmaster does not need any additional silicone or sealants to seal the joints. It has a unique push-fit locking system to make connecting and disconnecting really simple.

Please note – as with all twin wall parts the diameter quoted is the internal diameter – the external diameter is 2 inches larger due to the surrounding insulation.

Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

For more information about twin wall flue installations, see our guide.

• Distance to Combustibles: 60mm
• Brand: Shieldmaster
• Warranty: 25 Years
• Finish: Stainless
• Internal Diameter: 175mm
• External Diameter: 225mm
• Connections: Push Fit With Locking Band (Included)
• Grade of Steel: 316 Internal, 304 External
• Thickness of Steel: 0.5mm
• Insulation: 25mm Compressed Rockwool
• Temperature Resistance: 450°C
• Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
• Designation: T450-N1-D-Vm-L50050-G60
