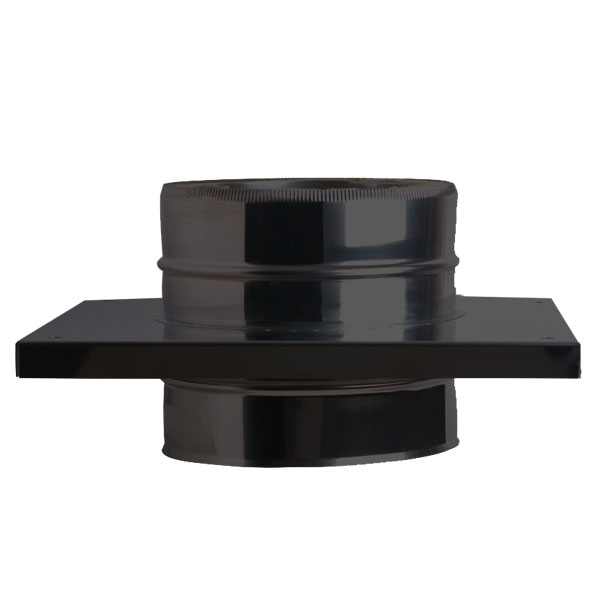

Console Plate – Twin Wall Insulated Flue Pipe – 7″ (175mm) – Black

£161.00 Inc VAT

Gallery
Description
Technical Details
Manufacturer
Reviews 0

The Shieldmaster console plate allows you to change from flexible liner in the bottom of your chimney to then go through the roof if your stack finishes before the roof. This part comes with a locking band to easily and quickly connect to a previous Shieldmaaster part.

Shieldmaster does not need any additional silicone or sealants to seal the joints. It has a unique push-fit locking system to make connecting and disconnecting really simple.

Please note – as with all twin wall parts the diameter quoted is the internal diameter – the external diameter is 2 inches larger due to the surrounding insulation.

Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

For more information about twin wall flue installations, see our guide.

Distance to Combustibles: 60mm
Brand: Shieldmaster
Warranty: 25 Years
Finish: Black
Internal Diameter: 175mm
External Diameter: 225mm
Connections: Push Fit With Locking Band (Included)
Grade of Steel: 316 Internal, 304 External
Thickness of Steel: 0.5mm
Insulation: 25mm Compressed Rockwool
Temperature Resistance: 450°C
Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
Designation: T450-N1-D-Vm-L50050-G60

Technical Details

SKU	TTWI-BSHI-LBLK-D175-CCNS
Brand	Shieldmaster
Flue System	Twin Wall Flue System
Flue Diameter	7" (175mm)
Flue Colour	Black
Flue Part	Console plate

Manufacturer: Shieldmaster

Shieldmaster twin wall flue pipe is precision made to achieve a smaller distance to combustible materials than many other pipes on the market. At just 60mm minimum clearance to combustibles and a 25 year warranty this brand of twin wall pipe really does the job well and is built to last. With its unique push fit system it easily locks with an included band without the need for any sealant or adhesives at the joins.
