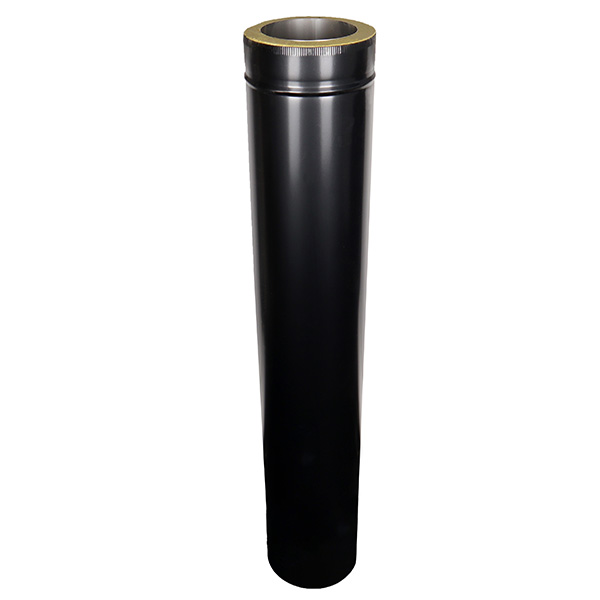

This twin wall flue pipe 1 meter length is made by Shieldmaster andis used to create the main run of your chimney flue system. This part comes with a locking band to easily and quickly connect to a previous Shieldmaaster part. This is a fixed length of pipe and cannot be cut down.
Shieldmaster does not need any additional silicone or sealants to seal the joints. It has a unique push-fit locking system to make connecting and disconnecting really simple.
Please note – as with all twin wall parts the diameter quoted is the internal diameter – the external diameter is 2 inches larger due to the surrounding insulation.
Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.
For more information about twin wall flue installations, see our guide.
- Distance to Combustibles: 60mm
- Brand: Shieldmaster
- Warranty: 25 Years
- Finish: Black
- Internal Diameter: 200mm
- External Diameter: 250mm
- Effective Length: 950mm
- Connections: 50mm Push Fit (Locking Band included)
- Grade of Steel: 316 Internal, 304 External
- Thickness of Steel: 0.5mm
- Insulation: 25mm Compressed Rockwool
- Temperature Resistance: 450°C
- Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
- Designation: T450-N1-D-Vm-L50050-G60
