Guy Wire Bracket – For Twin Wall Flue Pipe – 8″ (200mm) – Black

£44.99 Inc VAT

Gallery
Description
Technical Details
Manufacturer
Reviews 0

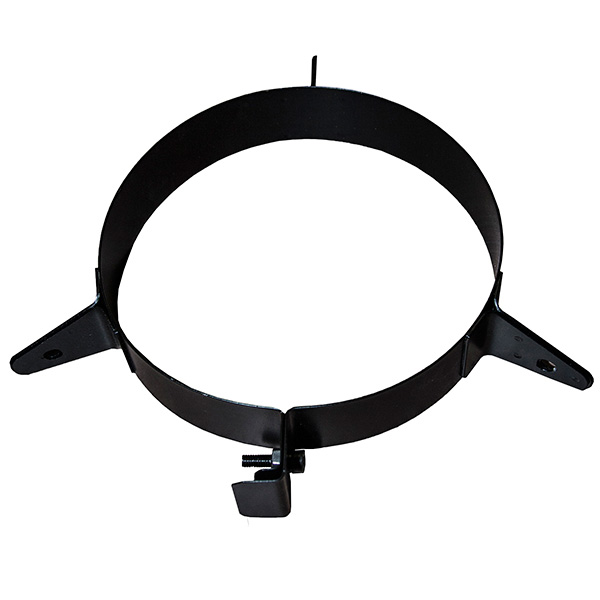

The Shieldmaster guy wire bracket is for flue runs that extend high above a roof and need extra support. The guy wire bracket clamps round the pipe and has three attachment points. We also supply a guy wire kit with wire, clamps, tensioners and islets.

Please note – as with all twin wall parts the diameter quoted is the internal diameter – the external diameter is 2 inches larger due to the surrounding insulation.

Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.

For more information about twin wall flue installations, see our guide.

Distance to Combustibles: 60mm
Brand: Shieldmaster
Warranty: 25 Years
Finish: Black
Bracket Diameter: 250mm
Grade of Steel: 304 External
Thickness of Steel: 0.5mm
Insulation: 25mm Compressed Rockwool
Temperature Resistance: 450°C
Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
Designation: T450-N1-D-Vm-L50050-G60

Technical Details

SKU	TTWI-BSHI-LBLK-D200-CGWB
Brand	Shieldmaster
Flue System	Twin Wall Flue System
Flue Diameter	8" (200mm)
Flue Colour	Black
Flue Part	Bracket

Manufacturer: Shieldmaster

Shieldmaster twin wall flue pipe is precision made to achieve a smaller distance to combustible materials than many other pipes on the market. At just 60mm minimum clearance to combustibles and a 25 year warranty this brand of twin wall pipe really does the job well and is built to last. With its unique push fit system it easily locks with an included band without the need for any sealant or adhesives at the joins.
