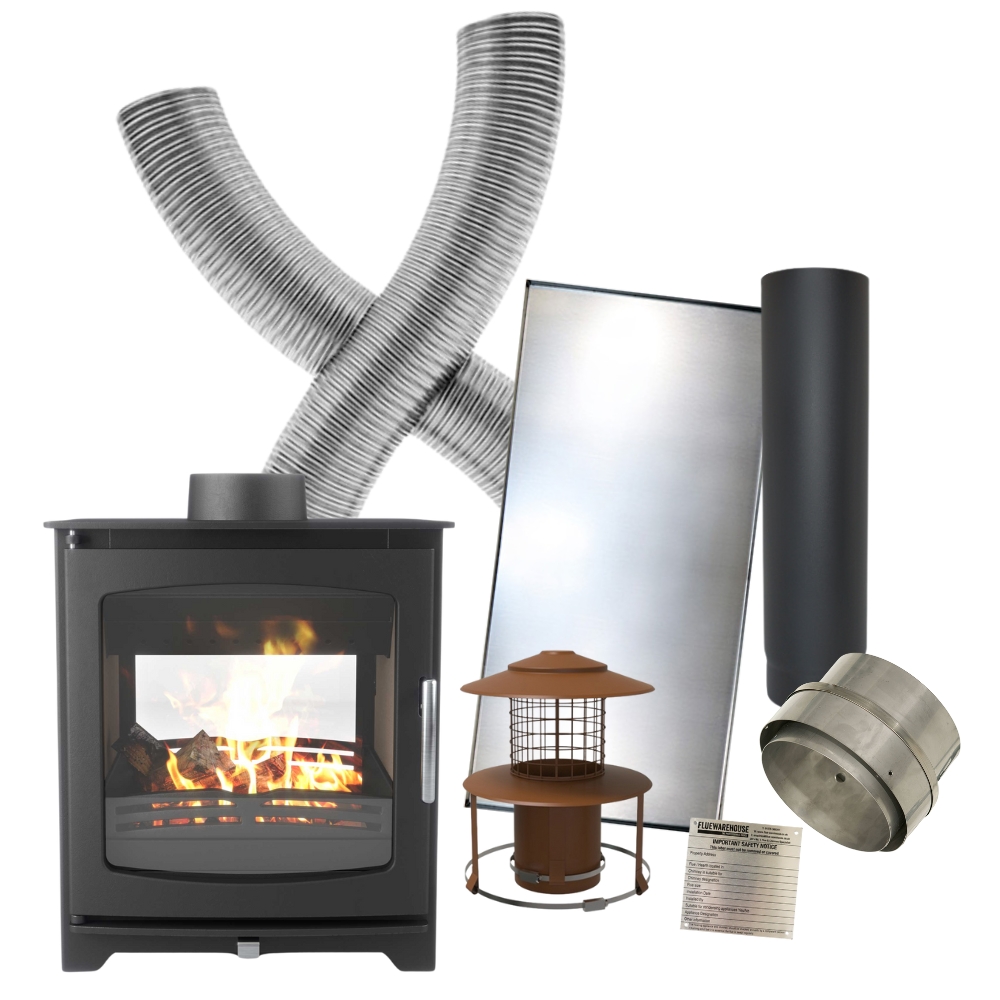

Henley Hazelwood DS 6kw Double Sided Wood Burning Stove & Flexible Flue Liner Kit

£1,622.06 Inc VAT

Add to Cart
Henley Hazelwood DS 6kw Double Sided Wood Burning Stove & Flexible Flue Liner Kit
Henley Hazelwood DS 6kw Double Sided Wood Burning Stove & Flexible Flue Liner Kit
£1,622.06 Inc VAT

Essential Extras

Display Option

Total: £1,622.06

This Flexible Flue Liner and Installation Kit offers a durable, easy-to-install solution into an existing chimney with a pot.

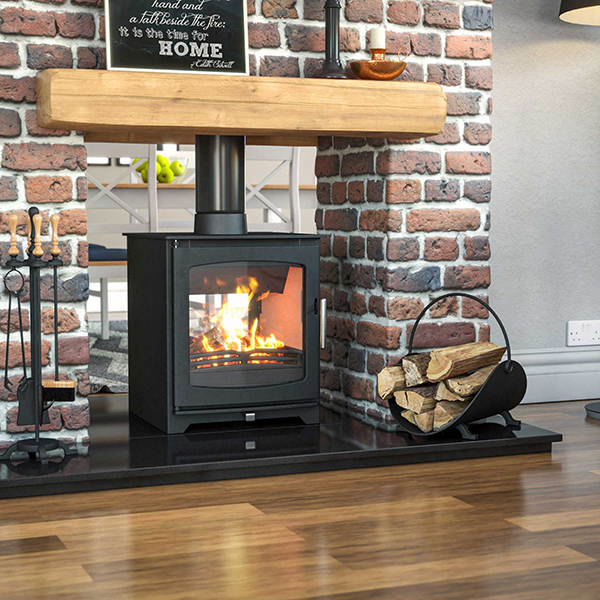

The Henley Hazelwood DS 6kW Double-Sided Wood Burning Stove offers both style and functionality, making it a perfect focal point for any room. This stunning stove is designed to deliver warmth and comfort to two spaces at once, with a sleek and modern aesthetic that complements any décor. With a heat output of 6kW, it’s ideal for medium-sized rooms, providing efficient heat with a high energy efficiency rating. Its double-sided design allows for a captivating view of the flames from both sides, creating a cozy ambiance for your living space.

Crafted with durable materials and built to the highest standards, the Hazelwood DS is eco-friendly and complies with the latest emission standards, ensuring a clean burn with minimal environmental impact. Whether you’re looking to enhance your living room, dining room, or any other shared area, this stove brings elegance, warmth, and a practical heating solution to your home.

Key Features:

  • Heat Output: 6kw, Perfect for Medium-Sized Rooms
  • Double-Sided Design: Enjoy The Warmth and View of The Flames from Two Rooms Simultaneously
  • High Efficiency: Designed For Optimal Energy Efficiency, Reducing Fuel Consumption
  • Eco-Friendly: Complies With the Latest Emission Standards for A Clean and Eco-Conscious Burn
  • Modern Aesthetic: Sleek And Stylish, Complements A Variety of Interior Designs
  • Durable Construction: Built With High-Quality Materials for Long-Lasting Performance
  • Easy To Use: Simple Controls for Managing Heat Output and Airflow
  • Clean Burn – Featuring A Territory Air System, This Allows the Excess Gases to Combust Given a Cleaner Burn.
  • Air Wash – An Advanced Air Wash System, Which Helps to Keep the Glass Clean. Using Specially Placed Vents to Draw External Air, Which Sweeps Over the Front Surface of The Glass, Effectively Preventing Buildup and Ensuring Its Cleanliness.
  • External Air – Enables Air to Be Taken from Outside the Building and Used for Combustion Within the Stove.

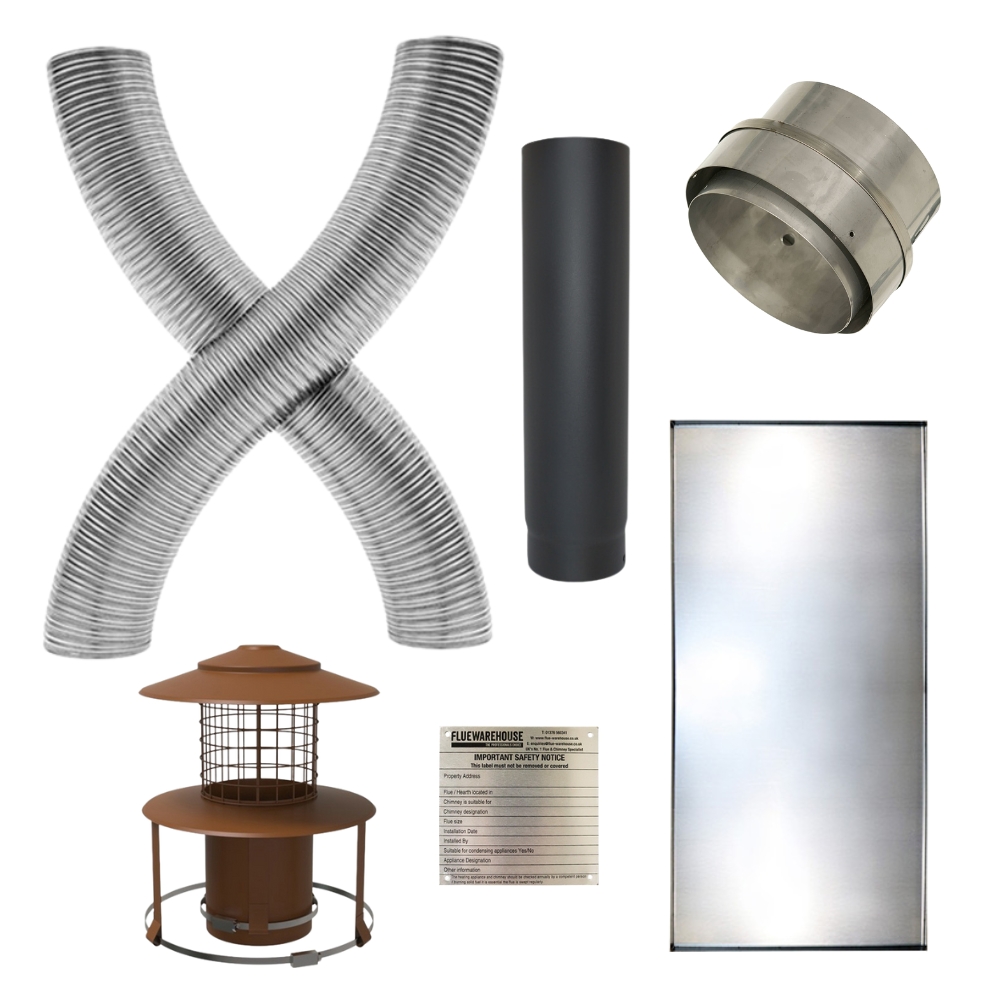

Installation Kit Includes:

  • 10 Meters of 5″ Flexible Flue Liner
  • Single To Flex Adapter – 5″
  • Terracotta Hanging Cowl with Rain Cap Mesh – 5″
  • 500mm of Vitreous Pipe – 5″
  • Register Plate 1200 x 600mm Plain
  • Notice plate

Technical Data

Henley Hazelwood DS 6kw Double Sided Wood Burning Stove

  • Double Sided: Yes
  • Style: Modern
  • Eco Ready: Yes
  • Fuel: Wood Only
  • Construction: Cast Iron
  • Output (kW): 6.00
  • External Height: 530
  • External Width: 465
  • External Depth: 582
  • Efficiency (%): 75.8
  • Warranty: 5 year(s)
  • Outlet Diameter (mm): 125
  • Outlet Diameter (inches): 5
  • External/Direct Air: Yes
  • Primary Air: Yes
  • Secondary Air: Yes
  • Weight (kg): 110.0
  • Distance rear to center of top outlet (mm): 232
  • Outlet Location: Top

10 Meters of 316L 5″ Flexible Flue Liner

  • Diameter: 5″ 125mm
  • Fuels: Wood, Gas & Oil
  • Inner Skin: 316L
  • Outer Skin: 316L
  • Seam: Omega
  • Material Thickness: 0.105mm
  • Designation: BS EN 1856-2 T600 N1 W Vm L50011 G/BS EN 1856-2 T200 P2 W Vm L50011 O
  • Approvals: HETAS

5″ Single to Flex Adapter

  • Effective Height: 50mm
  • Thickness of Steel: 0.8mm
  • Internal Diameter: 125mm (5″)
  • External Diameter: 145mm
  • Distance to Combustibles: 300mm (12″)
  • Distance to Non-Combustibles: 150mm (6″)
  • Colour Finish: Stainless Steel
  • Insulated: No
  • Flex Liner Connection: Cement & Self-Tapping Screws (not included)

5″ 500mm Pipe Matt Black

  • Diameter: 125mm
  • Material: Zero Carbon Steel
  • Fuel Type: Gas, Oil & Approved Solid Fuels
  • Max Operation Temperature: 600°C
  • Steel Thickness: 1.2mm
  • Coating: Powder Enamel
  • Coating Thickness: 0.2mm
  • Colour: Matt Black
  • Approval: EN1856-2 T600 N1 Vm L80120 G375
  • Distance to Combustible: 375mm

Register Plate 1200 x 600mm Plain

  • Material: Galvanised Steel
  • Thickness: 1.5mm
  • Length: 1200mm
  • Width 600mm
  • Connections: 4 x Angle Brackets
  • Centre Hole: No
  • Inspection Hatch: No

5″ Terracotta Hanging Cowl with Rain Cap Mesh

  • Finish: Terracotta
  • Diameter: 5″ 125mm
  • Material: 316L
  • Fuels: Wood, Oil, Gas, Smokeless Coal
  • Approvals: CE/HETAS

Chimney Notice Plate

  • Building Regulation: Yes
  • Construction: Steel
  • Plate Size: 100mm x 100mm
  • Fixing: 4 x Screws (not supplied)

Technical Details

SKUHAZELWOOD-DOUBLE-KIT
BrandHenley Stoves
StyleModern
Type
ConstructionCast Iron
Fuel TypeWood Only
Heat Output6 kW
DEFRA Approvedyes
EcoDesign Readyyes
clearSkies LevelclearSkies 5
Energy Efficiency RatingA+
Stove Efficiency75.7%
Weight110 kg
External DimentionsH530 x W465 x D582 mm
Flue Outlet LocationTop
Flue Outlet Diameter5" (125 mm)
External / Direct Airyes
Primary Airyes
ColourBlack
Warranty5 year(s)

Manufacturer: Henley Stoves

Henley Stoves have operated within the stove industry for more than 20 years. During this time, they have established themselves as a forward-thinking, innovative company with a mission to revolutionise the stove industry. All Henley stoves are made from premium 8 to 12mm high grade steel, with a solid cast iron door to give a traditional feel; all handles are designed to be cool to touch and made from stainless steel. All steel stove bodies are cut on laser profile CNC machines to ensure they are accurate to 0.5mm tolerance and they only use seamless-welded construction. All multi-fuel grates come with a standard rotary riddle grate mechanism for easy cleaning and de-ashing purposes and fire retainers are made from high chrome silicone cast iron to give longer life.

Warranty Details

Enjoy peace of mind with a comprehensive 5-year warranty. This includes a 1-year standard manufacturer's warranty, an additional 2-year standard Henley warranty, and an extra 2 years upon registering your stove online within 3 months of purchase.

Henley Warranty Form

Stove Options

Stove Glass Accidental Damage Cover

Replacing damaged stove glass is something most stove owners will be familiar with, be it by closing the door on a protruding log, over-tightening the glass retaining clips or the natural heat expansion of the door, chances are you have had to purchase replacement glass for your wood burning stove at least once.

By adding Glowing Embers' Accidental Damage Cover, you have peace of mind that the potentially costly process of cutting and shipping a replacement glass is covered for when those accidental breakages occur.

Terms & Conditions

Glass Protection covers you for cracked or smashed stove glass for the period of time that you select. We cover you for accidental breakage for any reason for the length of time you selected but doesn't cover for any consequential loss or installation costs. Installation is usually an easy process, and our team can talk you through it. To claim against this protection, simply send us an email prior to the expiration date (either 1 or two years from the purchase date, depending upon which option you pick) with a photo clearly showing your stove with the broken glass. We may require measurements or a template from you to cut the replacement glass accurately and your provision of this when required is conditional on our fulfilment of this protection. The protection covers you for one replacement only within the set period, additional breakages (outside of breakage on delivery which will be covered free of charge) will fall outside of this protection. This only covers flat glass cut by Glowing Embers and does not cover curved or printed glass.

Stove Fitting Kit

5" (125mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 5" (125mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate), 5" Reducing Plate and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 5" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut central hole (reduced to 5" diameter when used with the provided Reducing Plate) for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

6" (150mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 6" (150mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 6" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut 6" central hole for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

7" (175mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 7" (175mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 7" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires a 7" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

8" (200mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with an 8" (200mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 8" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires an 8" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

Flexible Chimney Liner Kit

5" (125mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 5" diameter Stove Pipe, your choice of 6-12m of 5" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

6" (150mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 6" diameter Stove Pipe, your choice of 6-12m of 6" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

8" (200mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 8" diameter Stove Pipe, your choice of 6-12m of 8" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

Stove Essential Extras

Carbon Monoxide (CO) Alarm

Legal requirement for all stove installations, add an easy to fit CO Alarm to your order so you're ready for a safe stove installation. Free standing or wall mounted (see our Carbon Monoxide (CO) guide for correct placement), this alarm comes supplied with batteries for a minimum seven years continuous operation and meets the requirements of Building Regulations Approved Document J.

Stove Pipe Thermometer

Add our simple to read Stove Pipe Thermometer to your order and start operating your stove at its optimum performance from day one. Intended for fixing to the first length of single wall stove pipe, this thermometer accurately displays the burning temperature in both °C and °F as well as illustrating temperature zones for best operation, too hot and too low.

500g Fire Cement

Ideal for a variety of applications, Fire Cement is an essential extra for all stoves as it is required for sealing stove pipe, outlet collar and Flex Adapter connections as well as around Register Plates to prevent loss of gases and heat from the system. This ready mixed black Fire Cement creates smoke tight seals once fully cured.

Double Socket Adapter

An essential for any European model of stove, you simply won't be able to connect your flue pipe without our Double Socket Adapter. Designed to secure over the stove's outlet collar (which will be a male spigot), the Adapter converts it to a female socket to allow your Stove Pipe or Twin Wall Adapter to connect securely and safely.

(Acorn) Black Stove Companion Set

Don't forget to add a Companion Set to your order as you'll wish you have one when first lighting the stove! This 530mm tall, traditionally designed set is finished in black and features all the essential fireside tools you need suspended above a sturdy base - Tongs for positioning logs inside the firebox, a shovel and brush for cleanly removing ash and a poker to stoke the fire.
