Rotational Support Length Sflue – 5″ (125mm)

£93.46 Inc VAT

Add to Cart
Rotational Support Length Sflue - 5" (125mm)
Rotational Support Length Sflue - 5" (125mm)
£93.46 Inc VAT

Display Option

Total: £93.46

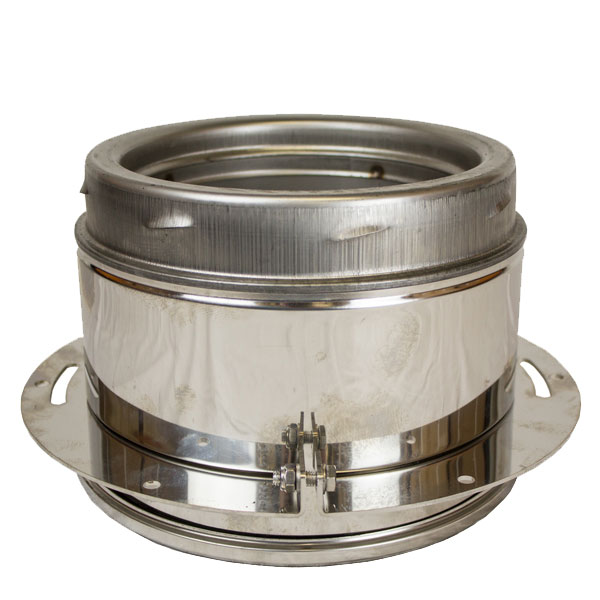

This Sflue Rotational Support length for your twin wall flue system incorporates a plate located 33mm from the bottom edge and features slotted holes for rotational adjustment, for fixing bespoke bracketry. This component doubles as a strut/guy attachment length offering anchoring points to which guys, or preferably rigid stays can be secured using M8 nuts and bolts.

SFL Sflue twin wall pipe is CE approved for use in the UK, designation number BS EN:1856-1 T450 N1 D Vm L50040 G50.

  • Distance to Combustibles: 50mm
  • Warranty: 10 years
  • Finish: Stainless Steel
  • Internal Diameter: 127mm
  • External Diameter: 152mm
  • Connections: Eight Barb Twist Quick Lock (Locking Band Included)
  • Grade of Steel: 316 Internal, 304 External
  • Thickness of Steel: 0.5mm
  • Insulation:: 25mm auger injected mineral wood material
  • Temperature Resistance: 450°C
  • Approvals: HETAS Approved, CE, BS EN ISO 9001
  • Designation No: BS EN:1856-1 T450 N1 D Vm L50040 G50

Technical Details

SKUTTWI-BSFL-LSTN-D125-CRSL
BrandSFL Sflue
Flue SystemTwin Wall Flue System
Flue Diameter5" (125mm)
Flue ColourSilver
Flue PartBracket

Manufacturer: SFL Sflue
