Elbow 45° Inc Locking Band Sflue – 6″ (150mm)

£100.00 Inc VAT

Gallery
Description
Technical Details
Manufacturer
Reviews 0

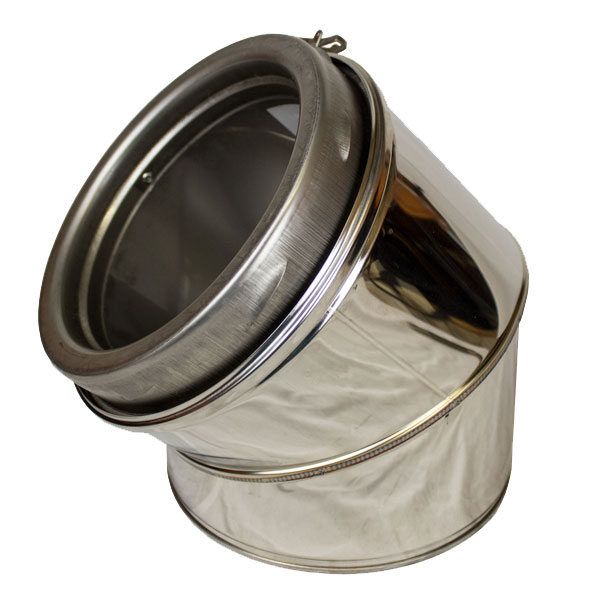

The 45° Elbow is used for creating offsets in an SFL Sflue twin wall pipe system. This item also comes supplied with a locking band for secure connections.

Sflue utilises an eight barb quick lock jointing system to secure one joint with another and further secured with the locking band.

Please note, to allow the full rotation of the part, this item does not feature the barbs at one end but is instead secured in place using the locking band provided.

SFL Sflue twin wall pipe is CE approved for use in the UK, designation number BS EN:1856-1 T450 N1 D Vm L50040 G50.

Distance to Combustibles: 50mm
Warranty: 10 years
Finish: Stainless Steel
Internal Diameter: 152mm
External Diameter: 203mm
Connections: Push Fit & Twist Lock (Locking Band Included)
Grade of Steel: 316 Internal, 304 External
Thickness of Steel: 0.5mm
Insulation:: 25mm auger injected mineral wood material
Temperature Resistance: 450°C
Approvals: HETAS Approved, CE, BS EN ISO 9001
Designation No: BS EN:1856-1 T450 N1 D Vm L50040 G50

Technical Details

SKU	TTWI-BSFL-LSTN-D150-A45B
Brand	SFL Sflue
Flue System	Twin Wall Flue System
Flue Diameter	6" (150mm)
Flue Colour	Silver
Flue Part	Elbow

Manufacturer: SFL Sflue
