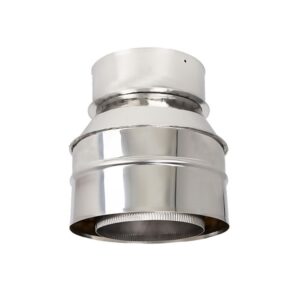

The Shieldmaster single to twin wall adaptor is the first twin wall flue part you will need for your twin wall flue installation. It connects directly to your stove spigot and then upwards to your twin wall pipes or to the length of enamelled pipe coming out of the top of your stove. It is usually recommended to come straight out of the stove with a length of enamel pipe as this pipe is both cheaper and harder wearing.
This product does not come with a locking band, as the next part you attach it to comes with a locking band. Attach the bottom of this product to your stove pipe or spigot with fire cement and the top connects directly to your twin wall pipes.
Please note – as with all twin wall parts the diameter quoted is the internal diameter – the external diameter is 2 inches larger due to the surrounding insulation.
Please see our Technical Information section for easy to understand guides for all the Building Regulations involved with stoves and flues.
For more information about twin wall flue installations, see our guide.
- Distance to Combustibles: 60mm
- Brand: Shieldmaster
- Warranty: 25 Years
- Finish: Stainless
- Internal Diameter: 200mm
- External Diameter: 250mm
- OD of Male End: 146mm
- Effective Height: 140mm
- Connections: 60mm Push Fit (Locking Band not required)
- Grade of Steel: 316 Internal, 304 External
- Thickness of Steel: 0.5mm
- Insulation: 25mm Compressed Rockwool
- Temperature Resistance: 450°C
- Approvals: HETAS ANC112, BS 476-20, CE, EN 1856-1:2009
- Designation: T450-N1-D-Vm-L50050-G60
