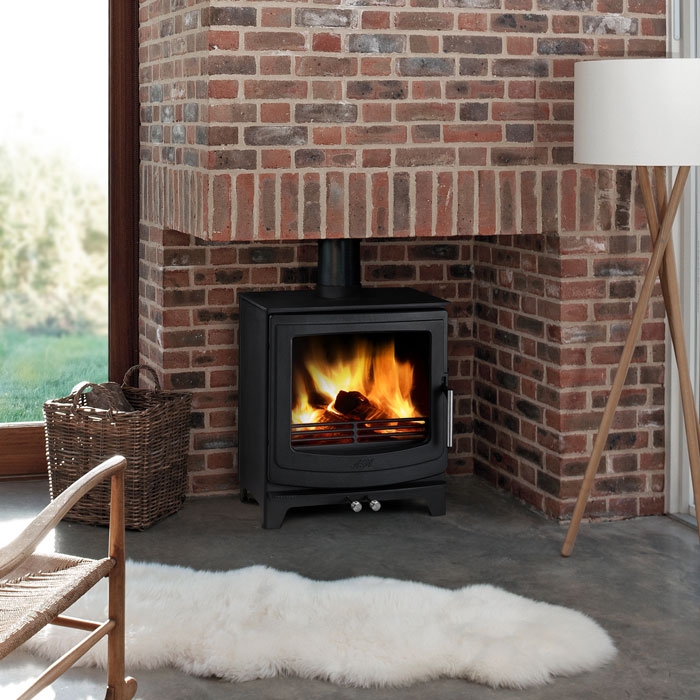

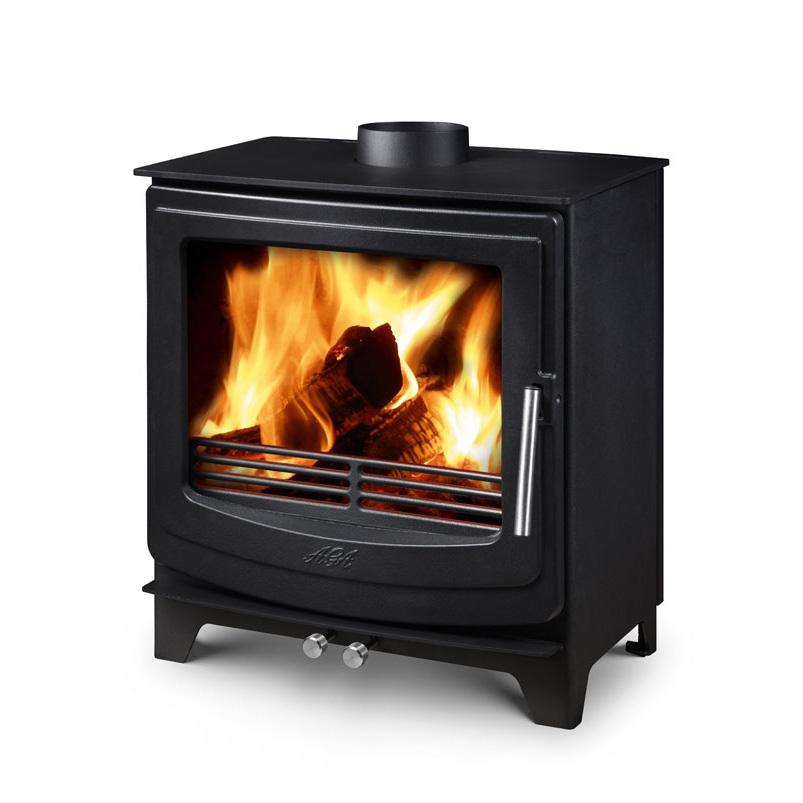

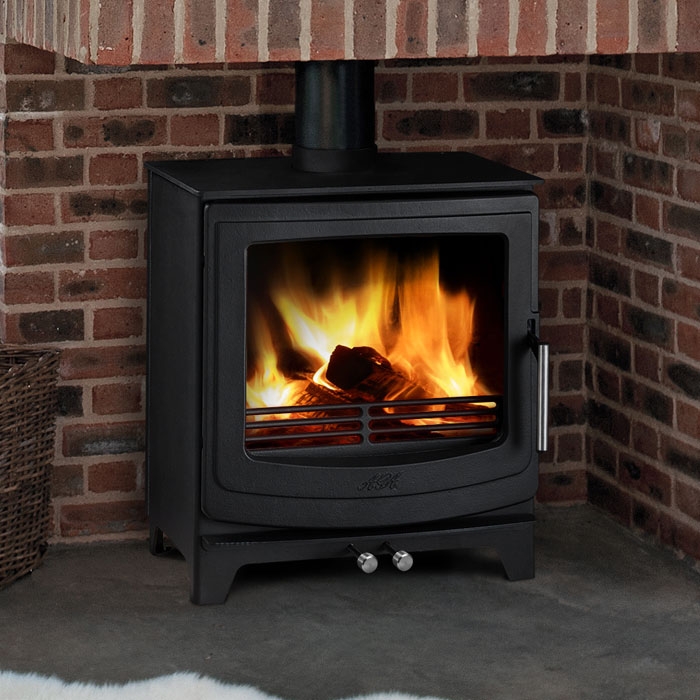

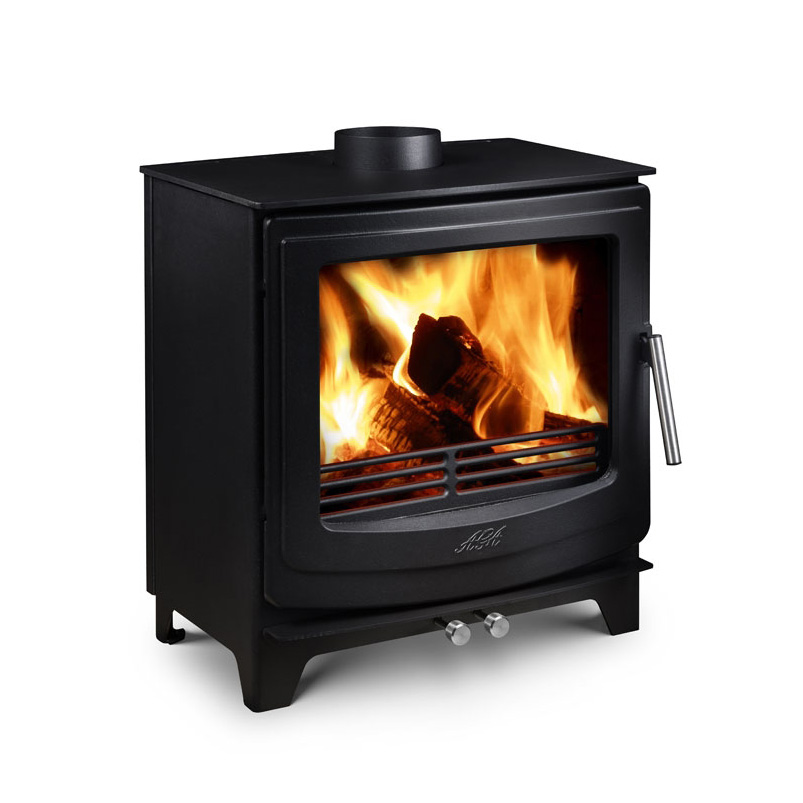

Aga Ellesmere EC5W – 5kw Defra Multifuel Stove

The Aga Ellesmere EC5W Multifuel Stove delivers an exceptional combination of style, performance, and versatility. With a slightly larger design and a powerful 5kW heat output, this stove is ideal for medium to large rooms, creating a warm and inviting atmosphere. DEFRA-approved, it is perfect for use in smoke-controlled areas, making it an eco-conscious choice for modern homes. Crafted with a contemporary aesthetic, the Ellesmere EC5W boasts clean lines and durable construction that reflect Aga’s renowned quality. The panoramic glass window adds to its charm, offering a breath-taking view of the flames that enhances the ambiance of any room. Whether you’re upgrading your existing heating system or adding a stylish yet practical feature to your home, this stove delivers on all fronts.

Key Features:

  • 5kW Heat Output: Ideal for heating medium to large living spaces with ease.
  • Wide Viewing Window: A stunning panoramic glass front provides an expansive and immersive view of the flames.
  • DEFRA Approved: Perfectly suited for use in smoke-controlled zones, ensuring eco-friendly operation.
  • Multifuel Capability: Supports both wood and solid fuels, offering flexibility and convenience.
  • Contemporary Design: Sleek, modern styling complements any interior décor while adding a touch of sophistication.
  • Efficient Heating: Engineered with advanced combustion technology for maximum heat output and reduced emissions.
  • Durable and Reliable: Built to last with Aga’s trusted craftsmanship and attention to detail.
  • Easy Operation: User-friendly controls ensure hassle-free operation and maintenance.

Installation Guide

Technical Details

SKUTSTV-CMF-BAGA-NEC5W
BrandAGA Stoves
StyleModern
TypeN/A
ConstructionSteel
Fuel TypeMulti Fuel
Heat Output5 kW
DEFRA Approvedyes
EcoDesign Readyyes
Energy Efficiency RatingA
Stove Efficiency77.6%
Weight117 kg
External DimentionsH605 x W575 x D386 mm
Flue Outlet LocationTop / Rear
Flue Outlet Diameter5" (125 mm)
Distance from sides to combustibles500 mm
Distance from rear to combustibles250 mm
Primary Airyes
Secondary Airyes
ColourBlack
Warranty5 year(s)

Manufacturer: AGA Stoves

The story of the AGA cookers and stoves is one of award-winning innovation and a proud heritage stretching back to 1922. Today’s AGA wood burning, gas and electric stoves are made with exactly the same precision techniques as their stoves were originally made in their factory in Shropshire. The modern AGA also contains state-of-the-art technology and is subject to rigorous quality controls and adherence to the latest environmental standards.

Warranty Details

Every new AGA leaving the factory and installed by an AGA approved outlet carries a 5 year guarantee on parts (certain consumable parts are excluded - for full details see below). This also includes all labour charges for the first 12 months.

No charge will be made for replacement parts providing:

  • An appliance fault is found.
  • The relevant part of the AGA is still covered by guarantee.
  • Regular servicing has been carried out in accordance with the manufacturer's instructions by authorised AGA engineers, using approved spare parts. The service booklet will need to be completed accordingly.
  • There will be no labour charges during the first 12 months of the warranty.
  • A call out charge may be applicable if the authorised AGA service engineer who calls at your home finds no fault with the AGA.
  • Other parts of your plumbing system or flue, are either faulty or do not comply with the appropriate installation instructions.
  • The unit is more than 12 months old.
  • If it is deemed the product has been misused.
  • Please note that invoices for call out repair work carried out during the guarantee period by any third party cannot be accepted.

What is not included in the guarantee:

  • Consumable parts.
  • Flues (except integral power and balanced flues).
  • Any labour charges not directly connected with the repair or replacement of a faulty component.
  • Any consequential loss.
  • Any part of the domestic hot water system which is not an integral part of the AGA.
  • Accidental or cosmetic damage.
  • Routine preventative service and maintenance.
  • Any external controls/components not supplied by AGA.
  • Oil filled Heat indicators are only covered for 12 months.



Regular Servicing

Regular maintenance is an essential part of keeping your AGA cooker running safely and efficiently. Since your AGA can operate continuously it is important to ensure regular servicing is undertaken. Only genuine AGA spare parts are used. Please note that routine servicing in accordance with the manufacturer's instructions is also a condition of the warranty agreement.

CONSUMABLE PARTS NOT COVERED BY THIS WARRANTY

Oil AGA cookers – Oil filters and wicks.

Gas fired AGA cookers – Ignitor electrodes, thermocouples.

Electric AGA cookers – Vent and circulation fans are covered for 2½ years (30 months).

EXCLUSIONS

This warranty does not cover products which have been altered by the customer or by third parties. Materials, spare parts and specific tools must be as recommended by AGA. Warranty does not cover misuse, abuse or impact damage. Corrosion caused by incorrect use of chemical cleaners or scratches to chrome or stainless components by abrasive cleaning materials are also excluded. Warranty strictly excludes commercial use. Appliances are covered for domestic use only.

Flues and Ventilation and External Services:

External services, gas supply, external oil lines, tanks and filters are not covered under this warranty. This warranty does not cover incorrectly or poorly maintained flue systems, or appliances installed on incorrect flue systems of unsuitable material and outside the specification detailed in the product instructions. Appliances not provided with adequate ventilation as detailed in the product instructions also fall outside this warranty.

Stove Options

Stove Glass Accidental Damage Cover

Replacing damaged stove glass is something most stove owners will be familiar with, be it by closing the door on a protruding log, over-tightening the glass retaining clips or the natural heat expansion of the door, chances are you have had to purchase replacement glass for your wood burning stove at least once.

By adding Glowing Embers' Accidental Damage Cover, you have peace of mind that the potentially costly process of cutting and shipping a replacement glass is covered for when those accidental breakages occur.

Terms & Conditions

Glass Protection covers you for cracked or smashed stove glass for the period of time that you select. We cover you for accidental breakage for any reason for the length of time you selected but doesn't cover for any consequential loss or installation costs. Installation is usually an easy process, and our team can talk you through it. To claim against this protection, simply send us an email prior to the expiration date (either 1 or two years from the purchase date, depending upon which option you pick) with a photo clearly showing your stove with the broken glass. We may require measurements or a template from you to cut the replacement glass accurately and your provision of this when required is conditional on our fulfilment of this protection. The protection covers you for one replacement only within the set period, additional breakages (outside of breakage on delivery which will be covered free of charge) will fall outside of this protection. This only covers flat glass cut by Glowing Embers and does not cover curved or printed glass.

Stove Fitting Kit

5" (125mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 5" (125mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate), 5" Reducing Plate and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 5" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut central hole (reduced to 5" diameter when used with the provided Reducing Plate) for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

6" (150mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 6" (150mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 6" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut 6" central hole for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

7" (175mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 7" (175mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 7" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires a 7" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

8" (200mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with an 8" (200mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 8" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires an 8" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

Flexible Chimney Liner Kit

5" (125mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 5" diameter Stove Pipe, your choice of 6-12m of 5" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

6" (150mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 6" diameter Stove Pipe, your choice of 6-12m of 6" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

8" (200mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 8" diameter Stove Pipe, your choice of 6-12m of 8" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

Stove Essential Extras

Carbon Monoxide (CO) Alarm

Legal requirement for all stove installations, add an easy to fit CO Alarm to your order so you're ready for a safe stove installation. Free standing or wall mounted (see our Carbon Monoxide (CO) guide for correct placement), this alarm comes supplied with batteries for a minimum seven years continuous operation and meets the requirements of Building Regulations Approved Document J.

Stove Pipe Thermometer

Add our simple to read Stove Pipe Thermometer to your order and start operating your stove at its optimum performance from day one. Intended for fixing to the first length of single wall stove pipe, this thermometer accurately displays the burning temperature in both °C and °F as well as illustrating temperature zones for best operation, too hot and too low.

500g Fire Cement

Ideal for a variety of applications, Fire Cement is an essential extra for all stoves as it is required for sealing stove pipe, outlet collar and Flex Adapter connections as well as around Register Plates to prevent loss of gases and heat from the system. This ready mixed black Fire Cement creates smoke tight seals once fully cured.

Double Socket Adapter

An essential for any European model of stove, you simply won't be able to connect your flue pipe without our Double Socket Adapter. Designed to secure over the stove's outlet collar (which will be a male spigot), the Adapter converts it to a female socket to allow your Stove Pipe or Twin Wall Adapter to connect securely and safely.

(Acorn) Black Stove Companion Set

Don't forget to add a Companion Set to your order as you'll wish you have one when first lighting the stove! This 530mm tall, traditionally designed set is finished in black and features all the essential fireside tools you need suspended above a sturdy base - Tongs for positioning logs inside the firebox, a shovel and brush for cleanly removing ash and a poker to stoke the fire.
