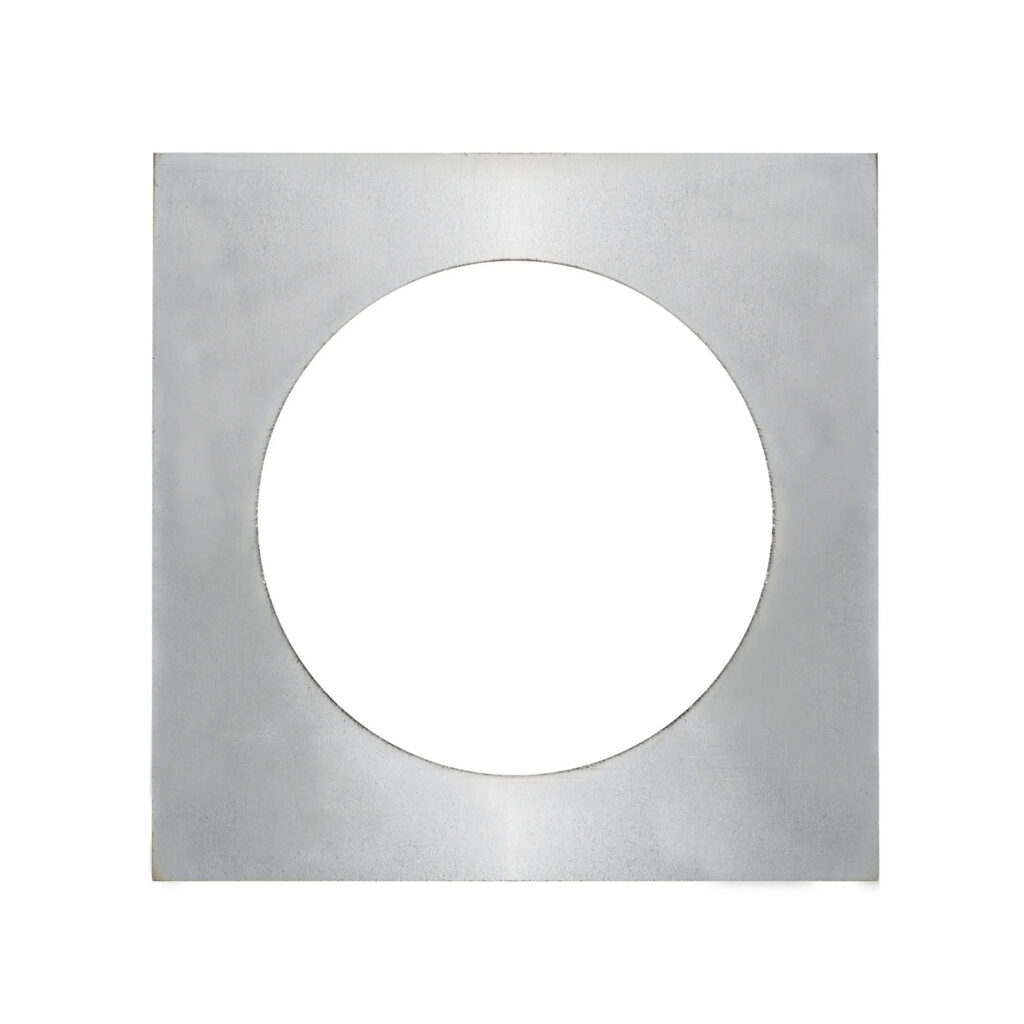

Chimfit Register Plates can accommodate either 4″ (100mm), 5″ (125mm) or 6″ (150mm) stove flue pipes through a pre-cut centre hole. Simply select the size of your flue pipe from the drop down menu above, if you select 5″ flue you will receive a reducing plate that simply requires attaching using self-tapping screws (not supplied).

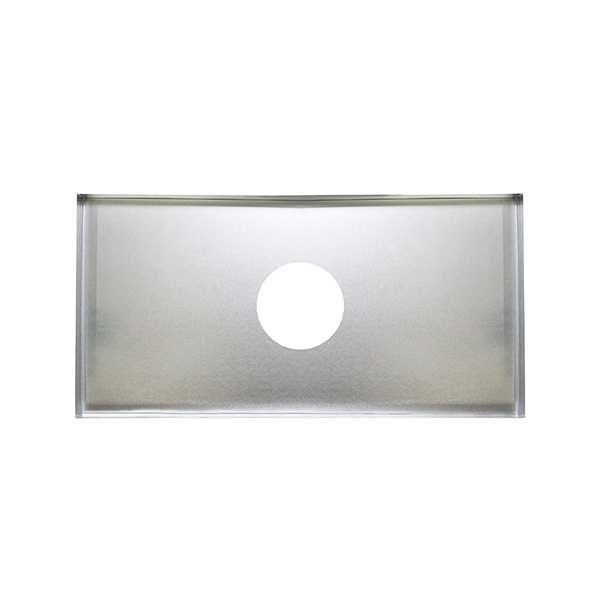

Our Chimney Register Plates are manufactured from non-corrosive, 1.5mm thick galvanised steel to be both durable and rust proof and come supplied with four angle supports to fix in place inside the chimney space.
These plates can be sprayed with any of our Heat Resistant paints, can be cut down to size easily and should be sealed with High Temperature Sealant. If a centrally located flue hole is not suitable for your installation, please see our plain plates.
- Product: Register Plate
- Brand: Chimfit
- Construction: Galvanised Steel
- Thickness: 1.5mm
- Length: 1000mm
- Width: 400mm
- Connections: 4 x Angle Brackets
- Centre Hole: Yes
- Inspection Hatch: No
- Flue Diameter: 100mm / 125mm / 150mm
- Compatibility: Solid Fuels, Gas, Oil
