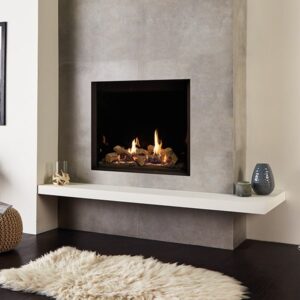

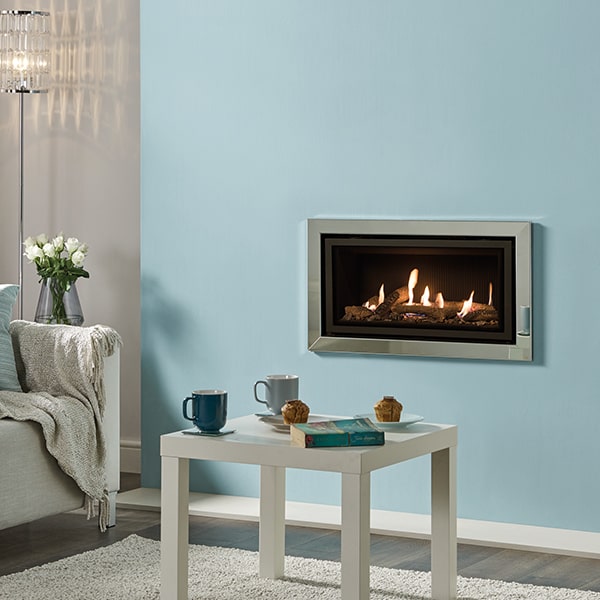

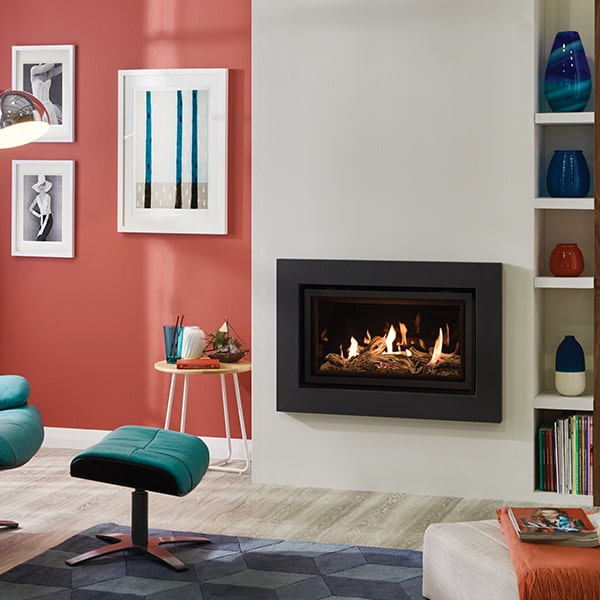

This Studio 1 is the smallest fire in this range and has an output of 4.6kW and 72% efficiency. As a rough guide, this fire is suitable for a room measuring in the region of 17ft (L) X 16ft (W) X 8ft (H) non-open plan with average insulation properties.

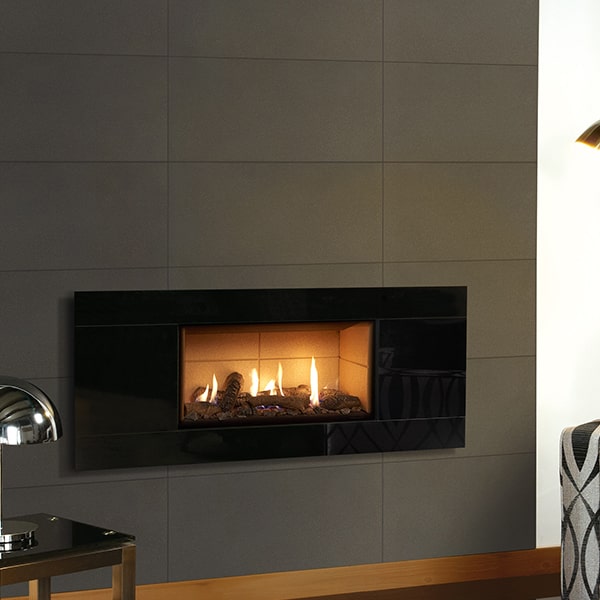

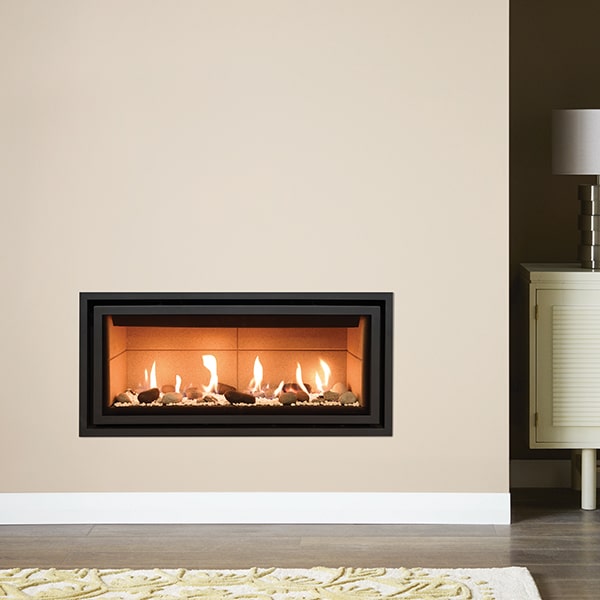

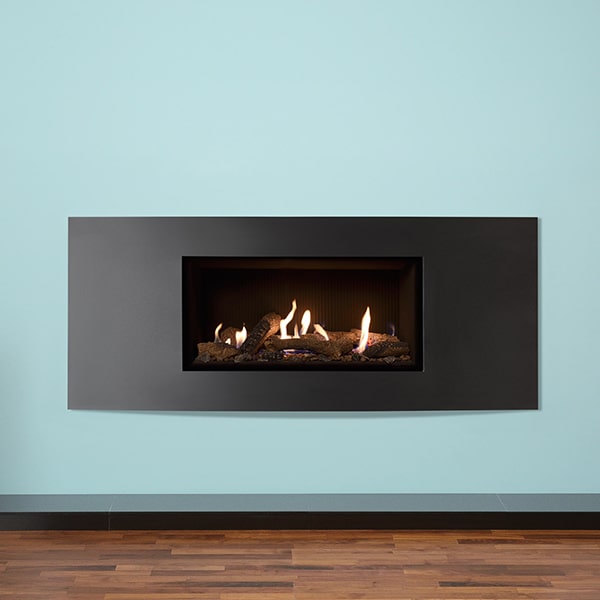

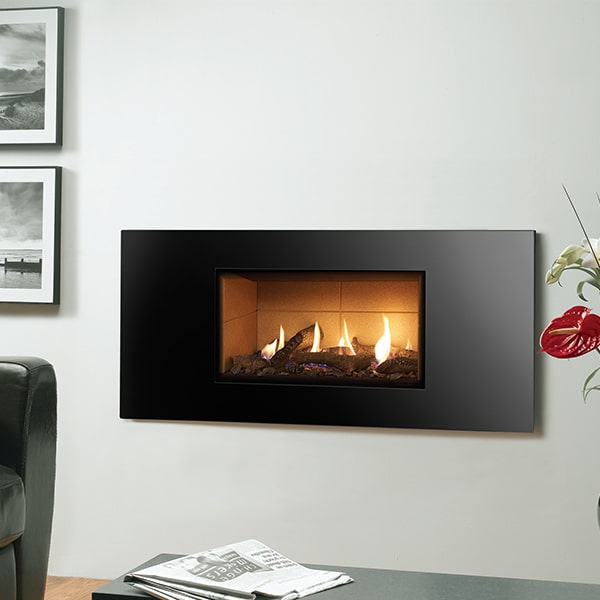

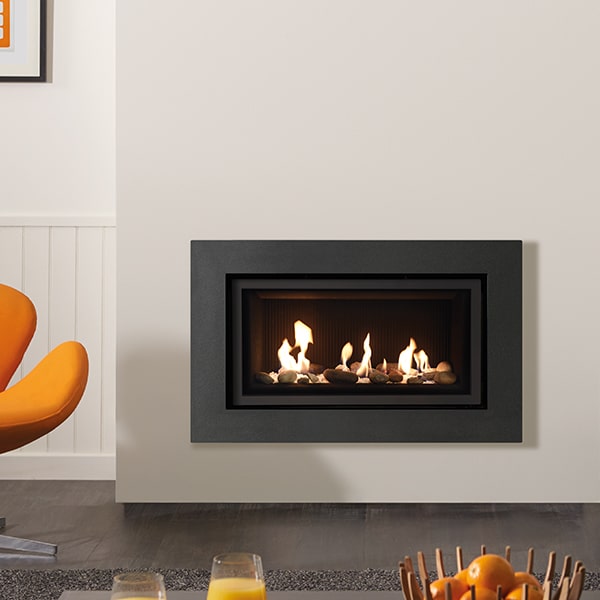

The Studio 1 comes with a choice of linings that can transform the fire’s look (pictured above): Black Reeded Lining or Echoflame Black Glass. Also, a choice of effects: Log Effect, Pebble & Stone Effect and Driftwood Effect.

Note, the dimensions given are those overall visible upon installation. We recommend receiving the fire prior to any construction work.

User and Installation Instructions

Remote Control

The Glass Fronted Studios come complete with the new look Programmable Thermostatic remote that also includes the additional benefits of a programmable timer and thermostatic controls, ensuring that whenever you return home, your house will always be warm and welcoming.

Flue Options

This model of stove allows the option for a choice of flue, conventional and balanced.

** Please note, this particular model of Studio 1 requires balanced flue.

Please note that all flues for the Balanced Gas Fires come in a silver/stainless steel construction – if you would prefer the black enamelled version, please call us for a price and availability.

Conventional Flue

Conventional chimneys rely on the natural circulation of the heated air to expel the products of combustion up your chimney and can work with either open or glass-fronted fires.

Balanced Flue

Balanced flues work in conjunction with glass-fronted fires only. The appliance is sealed from the room in which it is installed and a twin-wall pipe vents directly outdoors. Air for combustion is drawn in through the outer pipe whilst the inner pipe removes the combustion gases to the exterior of the property.

Technical Details

SKU	TGAS-CNAT-BGAZ-NSD1-CBFL
Brand	Gazco Fires
Style	Modern
Type	Inset Stove
Construction	Steel
Fuel Type	Gas
Heat Output	5.3 kW
Stove Efficiency	92%
External Dimentions	H415 x W821 x D350 mm
Flue Outlet Diameter	6" (158 mm)
Primary Air	yes
Secondary Air	yes
Tertiary Air	yes
Remote Control	yes
Warranty	7 year(s)

Manufacturer: Gazco Fires

Stovax (incorporating Gazco) manufacture wood burning, multi-fuel, gas and electric stoves, fires and fireplaces. The Stovax Group is the UK’s largest stove and fireplace producer with a range of designs from contemporary to traditional to suit everyone’s requirements.

Warranty Details

It's important to know what requirements need to be met in order to qualify for the 7-year warranty, as well as being aware of exactly what it covers.

To receive your Extended Warranty your Gazco Gas Stove or Fireplace must have been purchased from an authorised stockist within our Expert Retailer Network and your Warranty registered with Gazco within one month of the installation date. The commencement date for the warranty period is the date of installation. Proof of purchase, commissioning and servicing will be required in the event of a Warranty claim.

To register your warranty please click on the following link:

Warranty Registration

Stove Options

Stove Glass Accidental Damage Cover

Replacing damaged stove glass is something most stove owners will be familiar with, be it by closing the door on a protruding log, over-tightening the glass retaining clips or the natural heat expansion of the door, chances are you have had to purchase replacement glass for your wood burning stove at least once.

By adding Glowing Embers' Accidental Damage Cover, you have peace of mind that the potentially costly process of cutting and shipping a replacement glass is covered for when those accidental breakages occur.

Terms & Conditions

Glass Protection covers you for cracked or smashed stove glass for the period of time that you select. We cover you for accidental breakage for any reason for the length of time you selected but doesn't cover for any consequential loss or installation costs. Installation is usually an easy process, and our team can talk you through it. To claim against this protection, simply send us an email prior to the expiration date (either 1 or two years from the purchase date, depending upon which option you pick) with a photo clearly showing your stove with the broken glass. We may require measurements or a template from you to cut the replacement glass accurately and your provision of this when required is conditional on our fulfilment of this protection. The protection covers you for one replacement only within the set period, additional breakages (outside of breakage on delivery which will be covered free of charge) will fall outside of this protection. This only covers flat glass cut by Glowing Embers and does not cover curved or printed glass.

Stove Fitting Kit

5" (125mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 5" (125mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate), 5" Reducing Plate and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 5" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut central hole (reduced to 5" diameter when used with the provided Reducing Plate) for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

6" (150mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 6" (150mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 6" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut 6" central hole for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

7" (175mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 7" (175mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 7" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires a 7" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

8" (200mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with an 8" (200mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 8" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires an 8" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

Flexible Chimney Liner Kit

5" (125mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 5" diameter Stove Pipe, your choice of 6-12m of 5" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

6" (150mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 6" diameter Stove Pipe, your choice of 6-12m of 6" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

8" (200mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 8" diameter Stove Pipe, your choice of 6-12m of 8" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

Stove Essential Extras

Carbon Monoxide (CO) Alarm

Legal requirement for all stove installations, add an easy to fit CO Alarm to your order so you're ready for a safe stove installation. Free standing or wall mounted (see our Carbon Monoxide (CO) guide for correct placement), this alarm comes supplied with batteries for a minimum seven years continuous operation and meets the requirements of Building Regulations Approved Document J.

Stove Pipe Thermometer

Add our simple to read Stove Pipe Thermometer to your order and start operating your stove at its optimum performance from day one. Intended for fixing to the first length of single wall stove pipe, this thermometer accurately displays the burning temperature in both °C and °F as well as illustrating temperature zones for best operation, too hot and too low.

500g Fire Cement

Ideal for a variety of applications, Fire Cement is an essential extra for all stoves as it is required for sealing stove pipe, outlet collar and Flex Adapter connections as well as around Register Plates to prevent loss of gases and heat from the system. This ready mixed black Fire Cement creates smoke tight seals once fully cured.

Double Socket Adapter

An essential for any European model of stove, you simply won't be able to connect your flue pipe without our Double Socket Adapter. Designed to secure over the stove's outlet collar (which will be a male spigot), the Adapter converts it to a female socket to allow your Stove Pipe or Twin Wall Adapter to connect securely and safely.

(Acorn) Black Stove Companion Set

Don't forget to add a Companion Set to your order as you'll wish you have one when first lighting the stove! This 530mm tall, traditionally designed set is finished in black and features all the essential fireside tools you need suspended above a sturdy base - Tongs for positioning logs inside the firebox, a shovel and brush for cleanly removing ash and a poker to stoke the fire.
