Yeoman CL8 5.6kw Natural Gas Stove With Rear Exit – For Balanced Flue

Description

When you want to combine the allure of a log or coal fire with the appeal of an instantly controllable source of heat, Yeoman offers a range of expertly crafted traditionally styled gas stoves that can offer you instant warmth at the flick of a switch.

The largest in our family of Yeoman CL gas stoves, the CL8 has the same gently curving lines, control options and sophisticated stainless steel features as its smaller counterparts but, with a heat output of up to 5.6kW, the CL8 is capable of providing ambient heat to larger rooms for the whole family to enjoy. With hand painted logs and an enticing glowing embers effect, the CL8’s inviting flame picture is extended by the mirror-like qualities of the sides of the stainless steel fire lining, creating a bright and mesmerizing effect around which friends and family are sure to gather. This model also benefits from its wonderful panoramic large glass viewing window – 409mm (W) and 244mm (H).

As a rough guide, this stove’s output is suitable for a room measuring in the region of 19ft (L) X 18ft (W) X 8ft (H) non-open plan with average insulation properties.

Download User and Installation Instructions

Balanced Flue Kit Options

Stainless Steel kits are available to accompany our Yeoman Gas Stoves (with the integration of a balanced flue system). Some of these stoves offer Rear, Top or Rear and Top flue access. For information:

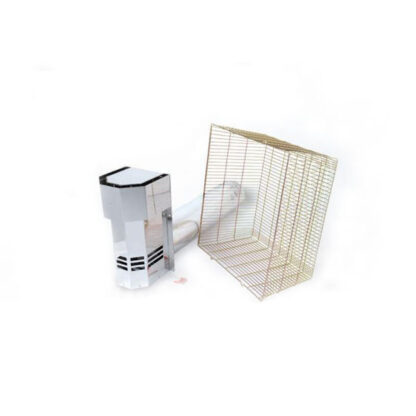

• Rear Exit (horizontal) includes 1 X 660mm aluminium straight length plus a stainless steel terminal and guard
• For all models except CL530, CL670, CL8 – Top Exit (up & out) includes 1 X 500mm straight length, plus 1 X 500mm terminal length, plus 1 X 90 degree bend
• For models CL530, CL670 and CL8 – Top Exit (up & out) includes 1 X 200mm straight length, plus 1 X 500mm straight length, plus 1 X 500mm terminal length, plus 1 X 90 degree bend
• Top Exit (vertical) includes 2 X 1000mm straight lengths, plus 1 X 1000mm terminal length

Note that when using a Top Exit (up & out) configuration a Guard will be required where the total length of the flue pipe system is below 2 metres. The Kit we provide therefore does necessitate the additional purchase of a separate flue Guard unless you are incorporating lengths you have purchased separately.
