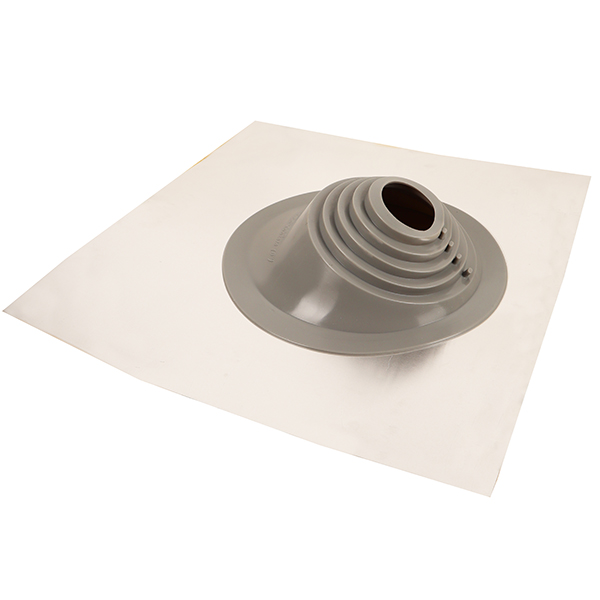

This Flashing provides a weather tight seal for Twin Wall insulated flue to pass through a tiled or slate roof.
The flexible silicone cone allows for movement in the pipe and is set at a 20 degree angle to allow adaptability to most roof pitches. The lead free aluminium base is designed to either mould to the contours of curved tiles or to be fastened under standard tiles or slate. The Flashing can be easily trimmed to size and secured in place with sealant or a Fixing Kit (sold separately). Use a Storm Collar a short distance above the Flashing to offer greater protection from the elements.
Please Note – The built in 20° pitch allows adaptability to almost any roof pitch including 45°. Only use maximum pipe diameters on minimal roof angles. For extreme pitch or surface irregularities select next larger size.
PRODUCT APPLICATIONS
This product has a high temperature resistance and therefore can be installed within 5m of the stove. For applications further than 5m, a low temperature flashing is suitable (sold separately). Suitable for use with all solid fuels as well as gas and oil appliances.
For further information regarding Twin Wall installations, please click here.
- Product: Residential Flashing
- Tiled / Slate Roof: Yes
- High / Low Temp.: High
- Roof Pitch: Up to 45°
- Pipe Ext. Diameter: 8″ – 11″
- Base Size: 25 3/4″ x 25 3/4″
- Top Opening Diameter: 5.5″
- Code: No.2
