Stovax Balanced Flue Kit – Top Exit, Up & Out (Vision Medium & CL8)

Balanced Flue Kit 8509 – Steel Stainless – Top Exit, Up & Out

All balanced flue stoves or fires from Gazco, Yeoman and Dovre require a particular balanced flue kit for correct use and installation. Balanced flues work in conjunction with glass-fronted fires only. The appliance is sealed from the room in which it is installed and a twin-wall pipe vents directly outdoors. Air for combustion is drawn in through the outer pipe whilst the inner pipe removes the combustion gases to the exterior of the property.

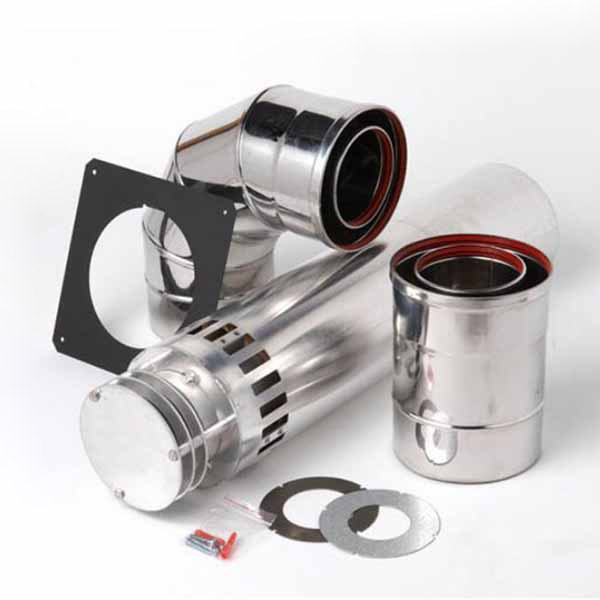

This kit includes:

1 x 200mm straight, 1 x 500mm straight, 1 x 500mm terminal length, 1 x 90° bend

This kit is compatialble with following stoves – Gazco Vision Medium & Yeoman CL8.

Key Features:

• Specially developed for use with Gazco, Yeoman and Dovre balanced flue fires and stoves
• 304 grade stainless steel and aluminium components
• Some items also offered with an Anthracite or Matt Ivory paint finish
• Requires no locking bands or self-tapping screws
• Inner and outer pipe secured by high temperature silicone seal
• Terminals rigorously tested in wind tunnels
• Create virtually any flue system to suit your installation

We recommend that you consult national regulations before commencing any work.

Please note – images show the Stainless Steel version.

For any queries, please call us on 01376 555 182
