Stovax Riva2 55 – 5kw Defra Wood Burning Casette Stove

Elevate your home’s ambiance with the Stovax Riva2 55 wood-burning stove, a portrait-style design that seamlessly complements both traditional and modern interiors. With a 5kW output, this stove is perfectly suited for small to medium-sized rooms, offering an impressive 77.1% efficiency and an A energy rating.

Featuring a clear glass window, the mesmerizing view of the dancing flames adds a touch of allure, making it a focal point in any room. The advanced Cleanburn and Airwash systems keep the glass clean and maintain a beautiful view of the fire, enhancing the aesthetic appeal while minimizing maintenance.

Precision control is at your fingertips with the intuitive air controls, allowing you to manage the temperature and combustion process effortlessly. The removable ashpan simplifies cleaning, ensuring that upkeep remains hassle-free.

With the Riva2 fires, the option of a 3-sided or 4-sided frame is available, offering flexibility to mount on a hearth or inset into a wall and is designed to fit a 22” high fireplace opening with the chairbrick removed.

For enhanced versatility, an optional 3-meter warm air ducting kit is available, enabling you to extend the stove’s warmth to up to two additional living spaces, maximizing comfort throughout your home.

Ri-Ignite Boost mode

Riva2 fires feature a Ri-Ignite Boost mode, allowing a rapid ‘boost’ to make it effortless to ignite logs, even from a small ember. Whether you want a lazy flame, or a vivid roar, the Riva2 gives you easy control over your fire, operated via the smooth control.

Key Features

DEFRA Approved for Use in Smoke Controlled Areas
Eco Design Ready
Ri-Ignite Boost Mode
3 Sided And 4 Sided Frames Available
Max Log Length: 350mm
Flame Viewing Area: 396 x 435mm
Dualflow Airwash For Ultra-Clean Cleaner Glass
Removeable Ashpan
Top Exit Flue Connection
External Integrated Air Connection
Optional External Air Pipe
Warm Air Ducting System Outlets
10 Year Warranty

User Instructions

Installation Instructions

Technical Details

SKU	TSTV-CWBI-BSVX-NR55
Brand	Stovax
Style	Modern
Type	Inset Stove
Construction	Steel
Fuel Type	Wood Only
Heat Output	5 kW
DEFRA Approved	yes
EcoDesign Ready	yes
Energy Efficiency Rating	A
Stove Efficiency	77.1%
Weight	85.9 kg

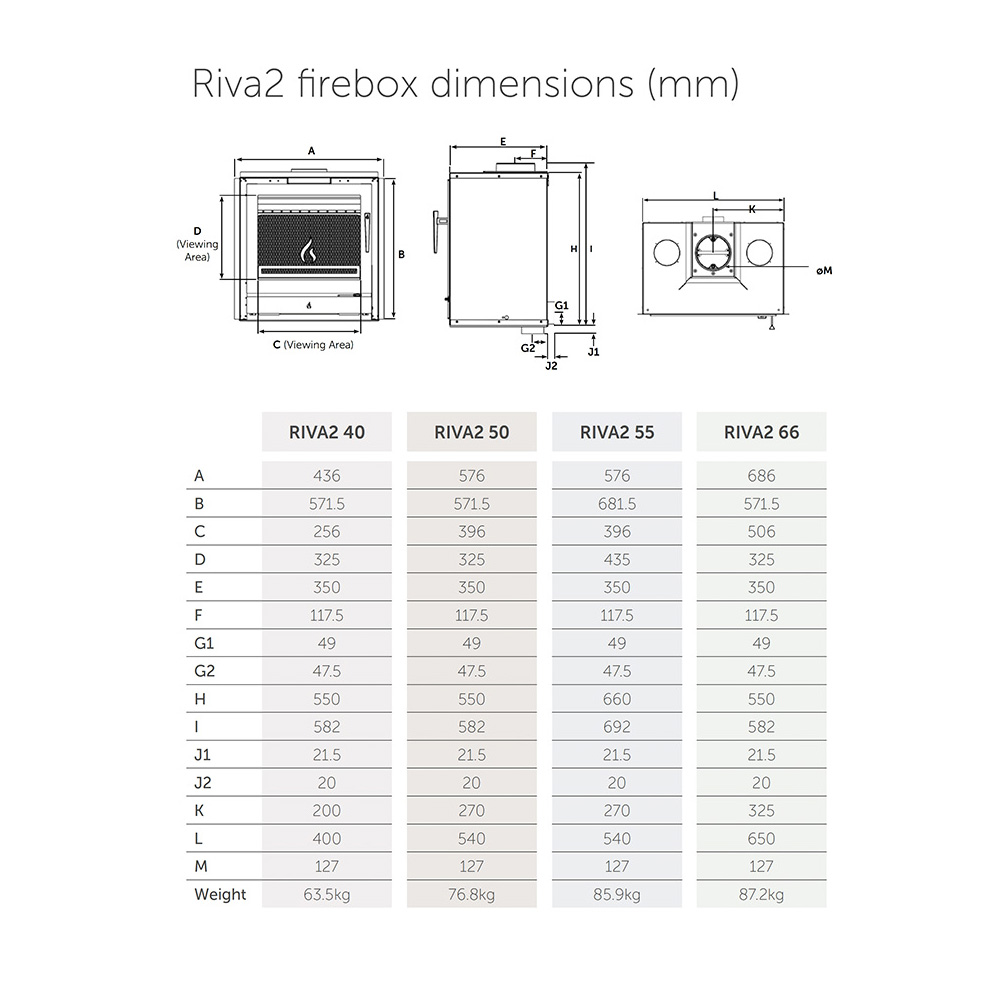

External Dimentions	H681 x W576 x D350 mm
Max. Log Length	350 mm
Flue Outlet Location	Top
Flue Outlet Diameter	5" (127 mm)
Distance from sides to combustibles	150 mm
Primary Air	yes
Colour	Black
Warranty	10 year(s)

Manufacturer: Stovax

Stovax is a British company dedicated to the development of high quality stoves, fireplaces, flue systems and associated accessories. Over the past 37 years, Stovax has grown to become one of Europe’s largest and most respected stove and fireplace manufacturers, constantly building on a reputation for superior craftsmanship, high quality materials, designer-led aesthetics and technical innovation.

Warranty Details

It's important to know what requirements need to be met in order to qualify for the 7-year warranty, as well as being aware of exactly what it covers.

To receive your Stovax Stove or Fireplace Extended Warranty you must have purchased from an authorised stockist within our Expert Retailer Network and your Warranty registered with Stovax within one month of the installation date. The commencement date for the warranty period is the date of installation. Proof of purchase, commissioning and servicing will be required in the event of a Warranty claim.

To register your warranty please click on the following link:

Warranty Registration

Stove Options

Stove Glass Accidental Damage Cover

Replacing damaged stove glass is something most stove owners will be familiar with, be it by closing the door on a protruding log, over-tightening the glass retaining clips or the natural heat expansion of the door, chances are you have had to purchase replacement glass for your wood burning stove at least once.

By adding Glowing Embers' Accidental Damage Cover, you have peace of mind that the potentially costly process of cutting and shipping a replacement glass is covered for when those accidental breakages occur.

Terms & Conditions

Glass Protection covers you for cracked or smashed stove glass for the period of time that you select. We cover you for accidental breakage for any reason for the length of time you selected but doesn't cover for any consequential loss or installation costs. Installation is usually an easy process, and our team can talk you through it. To claim against this protection, simply send us an email prior to the expiration date (either 1 or two years from the purchase date, depending upon which option you pick) with a photo clearly showing your stove with the broken glass. We may require measurements or a template from you to cut the replacement glass accurately and your provision of this when required is conditional on our fulfilment of this protection. The protection covers you for one replacement only within the set period, additional breakages (outside of breakage on delivery which will be covered free of charge) will fall outside of this protection. This only covers flat glass cut by Glowing Embers and does not cover curved or printed glass.

Stove Fitting Kit

5" (125mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 5" (125mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate), 5" Reducing Plate and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 5" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut central hole (reduced to 5" diameter when used with the provided Reducing Plate) for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

6" (150mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 6" (150mm) diameter outlet collar includes an 800mm x 400mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 6" internal diameter.

Sited above the stove, the metal Register Plate sits on - or can be screwed up to - the 4 supplied brackets and features a pre-cut 6" central hole for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

7" (175mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with a 7" (175mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 7" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires a 7" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

8" (200mm) Fitting Kit

Essential components for any stove installation into an existing chimney, this Fitting Kit for stoves with an 8" (200mm) diameter outlet collar includes a 1200mm x 600mm Register Plate (Chimney Closure Plate) and a 1000mm length of leading brand Vitreous Enamelled Stove Pipe in 8" internal diameter.

Sited above the stove, the metal Plain Register Plate sits on - or can be screwed up to - the 4 supplied brackets and simply requires an 8" hole cutting in it for the Stove Pipe to pass through, into the chimney cavity. This plate is easily cut to your required size and not only prevents debris or insulating granules from falling down the chimney, but also deflects heat rising from the stove into the room. The 1000mm length of leading brand Vitreous Enamelled Stove Pipe has a reduced male connection which must be fitted inside the outlet collar of the stove and sealed with our Vitcas or Kos Fire Cements, Envirograf Silicone Sealant or Heat Resistant Stove Rope. The traditional finish of our Stove Pipes not only perfectly match the body of the stove but can also withstand the heat from the burner without blemishing the finish of the flue.

Flexible Chimney Liner Kit

5" (125mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 5" diameter Stove Pipe, your choice of 6-12m of 5" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

6" (150mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 6" diameter Stove Pipe, your choice of 6-12m of 6" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

8" (200mm) Flexible Chimney Liner Kit

Simply select your required length of Flexible Chimney Liner to complete your stove installation into an existing chimney with our essential Chimney Liner Install Kit.

This kit includes the Adapter to connect to 8" diameter Stove Pipe, your choice of 6-12m of 8" Helix twin-skinned, 316 grade, stainless Flexible Chimney Liner (suitable for use with all solid fuels, gas and oil and comes with a lifetime of the appliance warranty), a stainless Hanging Cowl with Bird Guard Mesh for chimney pots and a building regulation required Chimney Notice Plate.

Stove Essential Extras

Carbon Monoxide (CO) Alarm

Legal requirement for all stove installations, add an easy to fit CO Alarm to your order so you're ready for a safe stove installation. Free standing or wall mounted (see our Carbon Monoxide (CO) guide for correct placement), this alarm comes supplied with batteries for a minimum seven years continuous operation and meets the requirements of Building Regulations Approved Document J.

Stove Pipe Thermometer

Add our simple to read Stove Pipe Thermometer to your order and start operating your stove at its optimum performance from day one. Intended for fixing to the first length of single wall stove pipe, this thermometer accurately displays the burning temperature in both °C and °F as well as illustrating temperature zones for best operation, too hot and too low.

500g Fire Cement

Ideal for a variety of applications, Fire Cement is an essential extra for all stoves as it is required for sealing stove pipe, outlet collar and Flex Adapter connections as well as around Register Plates to prevent loss of gases and heat from the system. This ready mixed black Fire Cement creates smoke tight seals once fully cured.

Double Socket Adapter

An essential for any European model of stove, you simply won't be able to connect your flue pipe without our Double Socket Adapter. Designed to secure over the stove's outlet collar (which will be a male spigot), the Adapter converts it to a female socket to allow your Stove Pipe or Twin Wall Adapter to connect securely and safely.

(Acorn) Black Stove Companion Set

Don't forget to add a Companion Set to your order as you'll wish you have one when first lighting the stove! This 530mm tall, traditionally designed set is finished in black and features all the essential fireside tools you need suspended above a sturdy base - Tongs for positioning logs inside the firebox, a shovel and brush for cleanly removing ash and a poker to stoke the fire.
