0-90° Adjustable Elbow 5″ (125mm)

£93.40 Inc VAT

Gallery
Description
Technical Details
Manufacturer
Reviews 0

0-90° Adjustable Elbow 5″ (125mm)

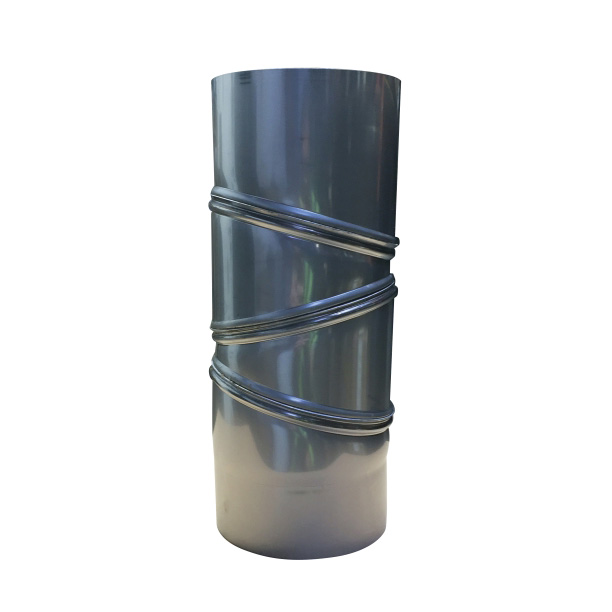

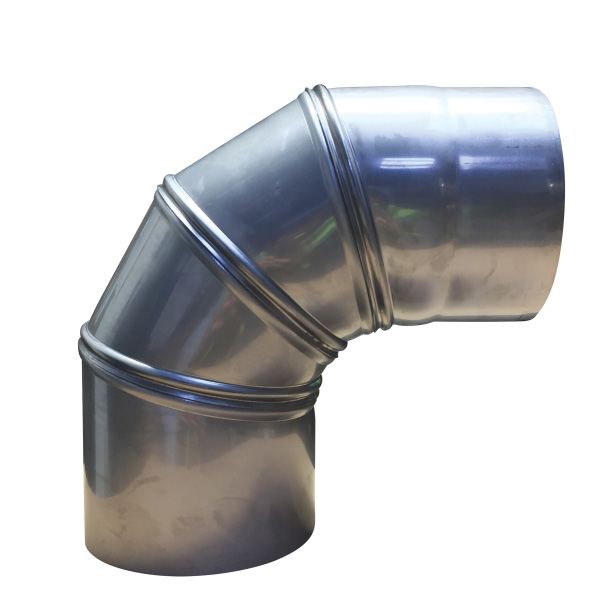

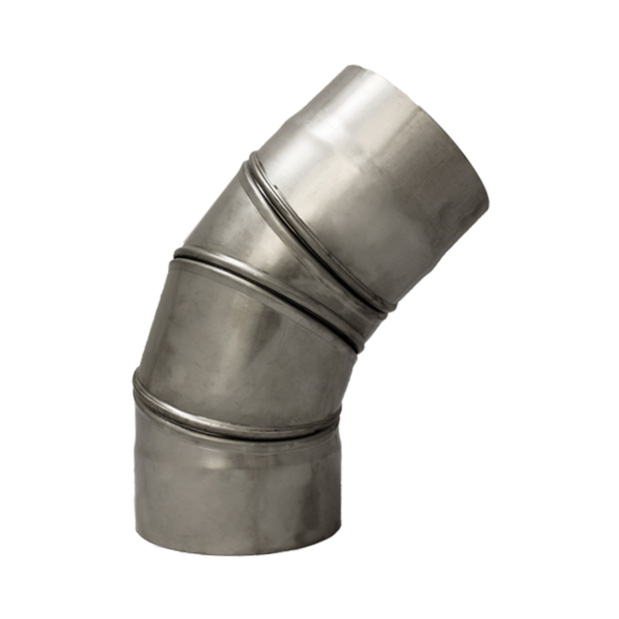

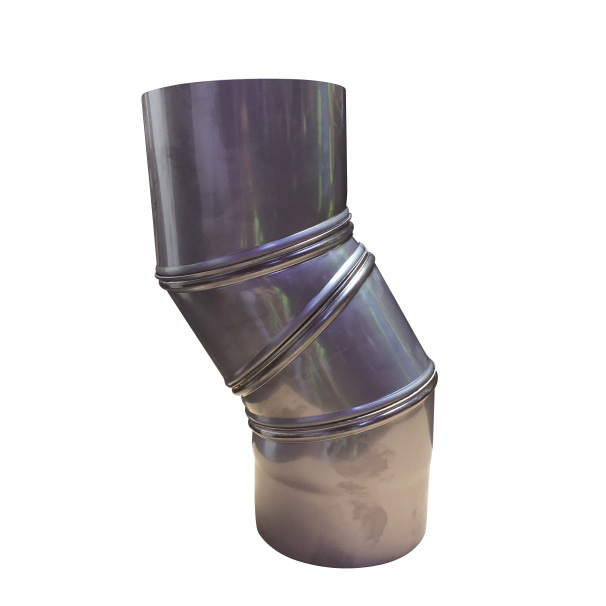

This 316 1mm 0°-90° Adjustable Elbow is designed to allow you to achieve multiple angles and off sets. The item comes unpainted and is made from 316L S/S.

This high-quality pipe is constructed from single-skin zero carbon steel and features a total thickness of 1.4mm to 1.5mm. The precise welding results in nearly invisible welds, and all bends are ground to a smooth finish, ensuring a seamless appearance and enhanced durability. The environmentally friendly coating process makes this pipe toxin-free and safer for the environment.

Designed for gas, oil, and solid fuel appliances, operating at temperatures up to 600°C. It serves as an essential connecting pipe between your appliance and a Flue Liner, Chimney Stack, or Twin Wall Flue System. Note that it should not be used to pass through combustible ceilings or walls.

For further information on using Vitreous Enamelled flue in your system, please see our Chimney Installations page or Non-Chimney Installs section

Diameter: 125mm
Straight Height: 500mm
Height at 90: Approx. 300mm
Material: Zero Carbon Steel
Fuel Type: Gas, Oil & Approved Solid Fuels
Max Operation Temperature: 600°C
Steel Thickness: 1.2mm
Coating: None
Coating Thickness: 0.2mm
Colour: Galvanised
Approval: EN1856-2 T600 N1 Vm L80120 G375
Distance to Combustible: 375mm
Warranty: 2 Years

Technical Details

SKU	TSWP-CVIT-BMIF-D125-A90A
Brand	Chimfit
Flue System	Single Wall Flue System
Flue Diameter	5" (125mm)
Flue Colour	Silver
Flue Part	Elbow

Manufacturer: Chimfit

All of our products are fully CE compliant and manufactured to the highest standards. We have a range of chimney register plates, flexible flue liner, chimney cowl products, and stove pipe available at extremely competitive prices. Quality is always our byword, so you can be assured that our products are fault free, ready to install and offer years of trouble free use.
